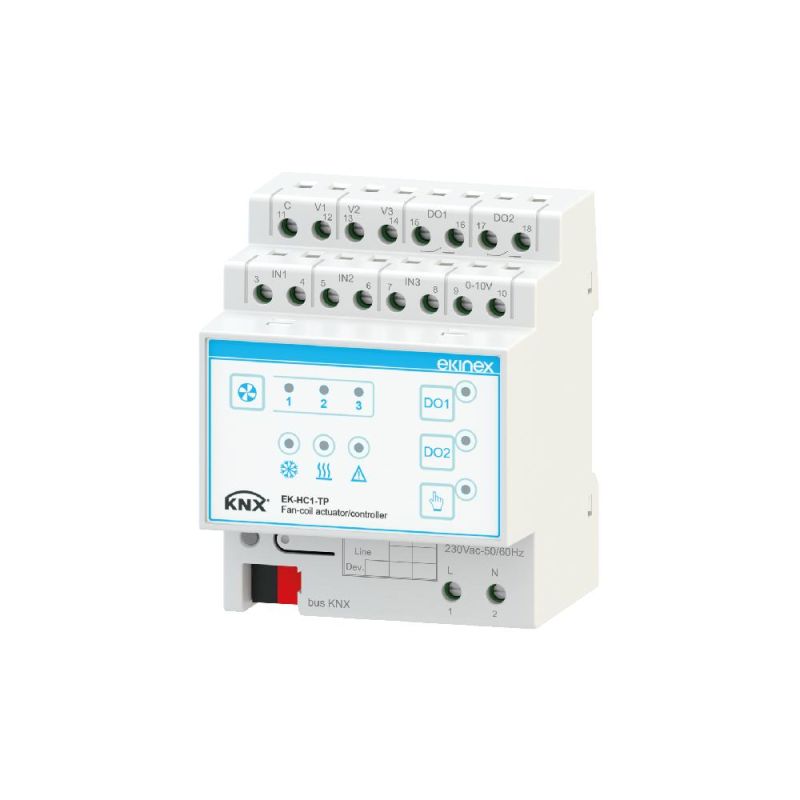

EKINEX EK-HC1-TP Fan coil actuator/controller - Full version

Fan coil actuator/controller - Full version

The Ekinex® EK-HC1-TP actuator/controller allows you to control a fan coil unit for the air conditioning of a room. The device can perform the function of a simple actuator in combination with a KNX room thermostat or that of a regulator/actuator with acquisition of the temperature value from a KNX room probe or from a probe connected to an analogue input. The device is suitable for 2 or 4-pipe hydraulic distribution systems with ON/OFF type control of one or two electrothermal actuators for shut-off valves and a fan with three discrete speeds or with a brushless motor. The outputs not used to control the fan coil unit can be configured as channels of a binary output to perform other functions. The equipment also includes 3 inputs that can be freely configured as analogue or digital. The membrane keyboard allows manual control and includes LEDs for status indication; a button allows you to switch between automatic and manual operation. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus; 230 Vac mains voltage is additionally required for operation.
