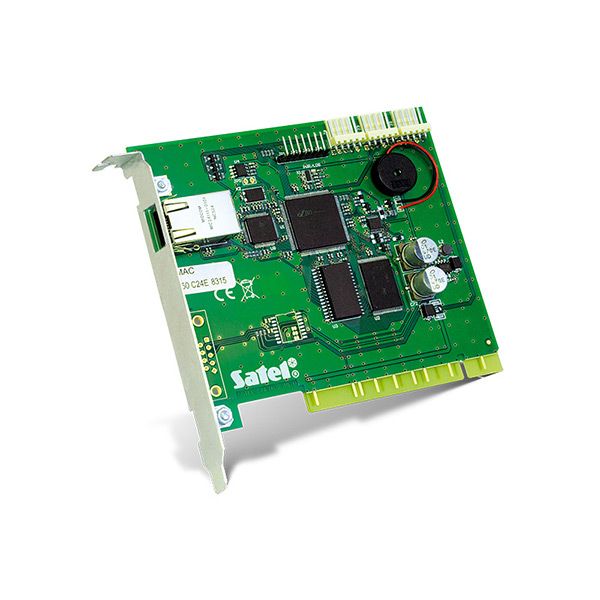

SATEL STAM-1 RE Expansion card for additional Ethernet line

Expansion card for additional Ethernet line

STAM-1 RE is an Ethernet receiver expansion board, which is an integral part of the STAM-2 monitoring station. It should be connected to the STAM-1 P or STAM-1 PE receiver base board. The device is a complete receiver of TCP/IP protocol signaling from SATEL Ethernet and GPRS devices. Allows you to configure a supervision center for monitoring the status of connected alarm systems. STAM-1 RE can be installed in the PCI slot of any PC from which only power is derived. Other hardware solutions can also be used, e.g. the cards can be installed in the STAM-BOX housing or in the monitoring station system with integrated STAM-IRS micro server. Communicates with the PC via the RS-232 port (DB-9 connector). Each Ethernet receiver card is equipped with an RJ-45 jack connector for the Ethernet network, which allows you to assign an IP address to the monitoring station.

The module can manage up to 256 subscribers with filtering of incoming events based on the physical address (MAC). when they are not sent to the monitoring station, which prevents data loss. The individual link supervision and Ethernet link supervision functions ensure the correct functioning of the STAM-1 RE.
