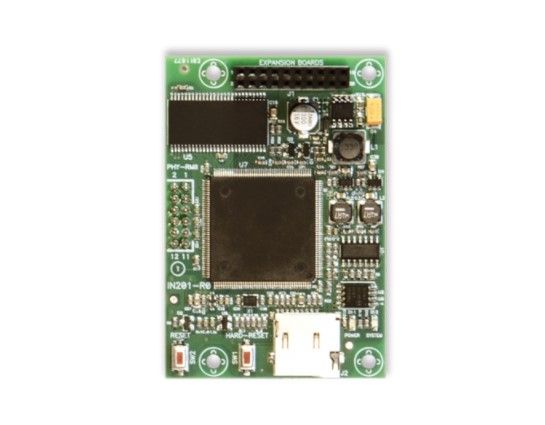

INIM PRIMELAN Ethernet interface for connection to LAN and WAN networks

Ethernet interface for connection to LAN and WAN networks. TCP/IP protocol management. Sending emails with attachments. Integrated web server. SIA-IP protocol management. AES128bit data encryption. IP video verification (Onvif S). ModBus IP protocol. KNX protocol management. EN50131-3 IMQ certification.

Optional advanced IP connectivity module. It is inserted into the main board of the Prime control unit and has a slot for a microSD-card. PrimeLan allows you to send detailed emails in the body of the message for each individual event, complete with any “attachment” (contained in the microSD). The message may contain links to sites or IP devices such as an NVR or a web cam. The presence of an integrated web server, with an “Alien” interface, allows control via tablet, smartphone or PC using an internet browser. PrimeLAN manages interactive graphic maps allowing interaction with the system, operating on complete plans and active icons to control any activation or command. JPEG and MJPEG streams are also supported from ONVIF webcam presets aimed at video verification by sending e-mails complete with pre- and post-event images. The management of swivelable PTZ cameras is integrated. PrimeLan allows the integration of Prime with KNX systems.
