SATEL TSD-1 EN 54 certified smoke and heat detector
- MT Code
- SAT_TSD-1
- Manufacturer Code
- TSD-1
- Brand
- SATEL
Description
EN 54 certified smoke and heat detector

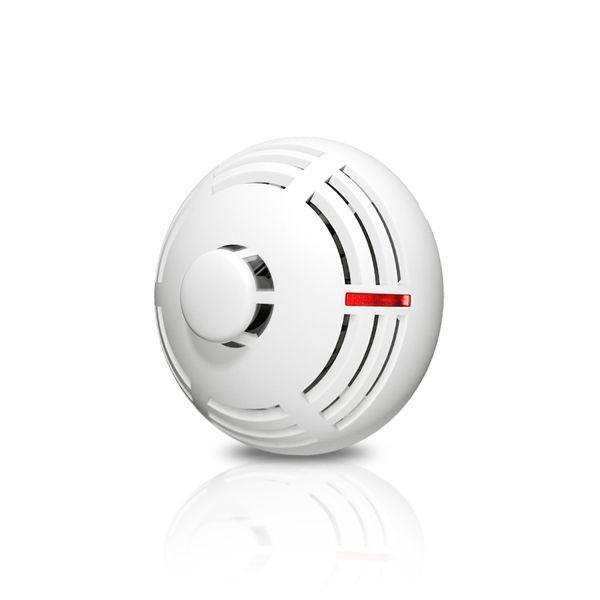

The TSD-1 is a point detector, designed for detecting the initial stage of fire development. For this purpose, the equipment is equipped with a visible photoelectric smoke detector, as well as a temperature rise rate sensor. The unique construction of the measurement chamber ensures great sensitivity and omni-directionality, while the Hexa mesh precision filter in stainless steel ensures against the entry of contaminants and small insects inside. The configuration of the detector through the use of microswitches, and the built-in end-of-line parametric resistors, simplify the connection of the equipment to practically any alarm control panel with a 12 V power supply.
certification of conformity carried out by the CNBOP certifying body for:
- EN 54-7 - smoke detection
- EN 54-5 - heat detection
- Unique Swirl chamber, which speeds up smoke detection
- selectable operating mode (smoke, heat, multisensor)
- configuration of the line type (NO/NC/2EOL) with DIP switch
- Precision Hexamesh filter in stainless steel
- self-diagnostic detection chamber cleaning
- Detachable base for easy installation
- compatible with all 12 V DC control panels
- IP protection level: IP20
Data Sheet
| Codice Produttore | TSD-1 |
|---|---|
| Brand | SATEL |
