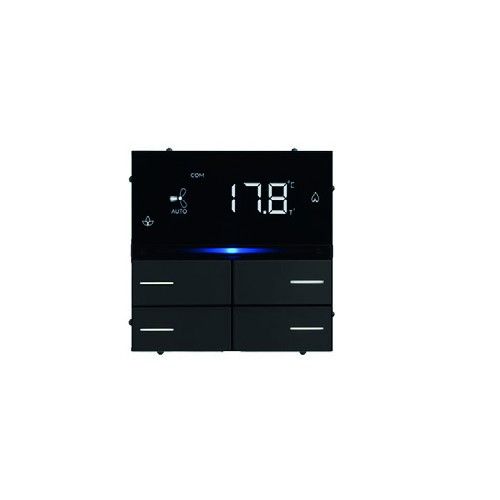

EELECTRON TO04L02KNX-3 LITE THERMOSTAT 4 KEYS | 8 CH - RGB BLACK

MT Code: ELC_TO04L02KNX-3
Manufacturer Code: TO04L02KNX-3
Brand: EELECTRON

<p_The KNX EELECTRON TO04L02KNX-3 thermostat is a highly specialized device for climate control and environment management, particularly suitable for applications in hotel rooms and commercial environments.

Key Features

This thermostat is part of the OL-U® KNX® series and stands out for its plastic finishes for the buttons and plates. The device is equipped with an LCD display with adjustable backlighting, ensuring optimal visibility in any light condition.

Sensors and Controls

The TO04L02KNX integrates temperature sensors and two two-stage thermostats, allowing the control of two distinct areas. Each thermostat is equipped with an integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

The device has 4 mechanical keys (8 channels) for managing on/off commands, dimmers, shutters and blinds, or other programmable command and control functions. In addition, there is a capacitive bar with swipe function for implementing programmable KNX functions.

Visualization and Logic

A freely configurable RGB LED bar allows the display of states or other quantities available on the KNX bus. The device has 32 logical blocks for creating simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators. Predefined algorithms are available for proportional temperature and humidity control or dew point calculation.

Integration and Security

The thermostat is configurable through the ETS® application program and can communicate with the KNX Data Secure protocol, ensuring secure and reliable communication within the KNX network.

Specific Applications

The main field of application is the management of hotel rooms. Using a magnetic sensor installed on the door and connected to a digital input, the device manages accurate presence information, detecting the presence of people in the room and differentiating multiple behaviors.
