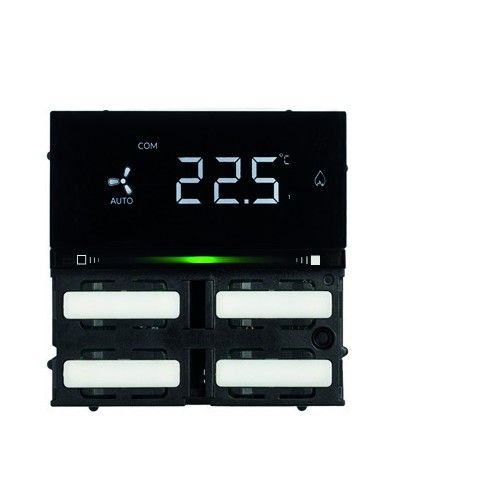

EELECTRON TO04A01KNX 4-BUTTON THERMOSTAT | 8 CH - RGB SWIPER

EELECTRON TO04A01KNX 4-BUTTON THERMOSTAT | 8 CH - RGB SWIPER

MT Code
ELC_TO04A01KNX
Manufacturer Code
TO04A01KNX
Brand
EELECTRON
extra discount
Description
<p/the EELECTRON TO04A01KNX device is a high-quality KNX thermostat, designed for wall installation and part of the OL-U® KNX® series. This thermostat is characterized by an elegant and functional design, with a body in painted plastic in the standard version or in metal in the Metal Edition version.

Key Features

The device is equipped with an LCD display with adjustable backlighting, ensuring optimal visibility in any light condition.

Thermostatic Control

The thermostat integrates two control stages for two distinct areas, each equipped with an integrated PI controller. This allows the control of heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

On the front side of the device there is a capacitive bar with swipe function, which allows the implementation of programmable KNX functions. In addition, 4 mechanical keys (8 channels) are available for managing on/off commands, dimmers, shutters and blinds, or other programmable command and control functions.

Visualization and Logic

The device includes a freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus. 32 logical blocks are also available to create simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. You can use predefined algorithms such as proportional temperature and humidity controls or dew point calculation.

Presence functionality

The device integrates the “Virtual Pocket Logic”, which is particularly useful in hotel rooms. Through a magnetic sensor installed on the door and connected to a digital input, the system manages accurate presence information and can infer the presence of people in the room using one or more dedicated sensors.

Configuration and Communication

The device can be configured through the ETS® application program and communicates with the KNX Data Secure protocol. The dimensions of the device are 71x71x25 mm without plate, and 92x92x11 mm with a 2-module frame.

Conditions of Employment
  • Operating temperature: -5 °C +45 °C
  • Storage temperature: -20 °C +55 °C
  • Relative humidity (non-condensing): max. 90%
  • Power supply: via EIB/KNX 21 ÷ 32V DC bus, max 30 mA
Data Sheet
Codice a barre 8000002760997
Codice Produttore TO04A01KNX
Brand EELECTRON
