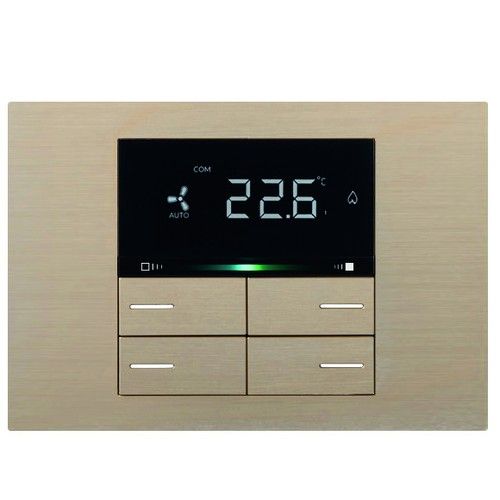

EELECTRON PO71A03MT-CH 71 METAL CHAMPAGNE PLATE - 3 MODULES

The EELECTRON PO71A03MT-CH product, although not specifically described in the sources provided, can be inferred as part of the EELECTRON KNX product line, known for their technical characteristics and integrated functionality. Here's a detailed description based on similar products from the same line:

General Characteristics

The device is designed for wall installation and is part of the OL-U® KNX® series, known for its versatility and compatibility with the main international standards (Italian, German, English, Swiss).

Sensors and Thermostats

The device integrates temperature and humidity sensors, allowing precise management of environmental conditions. It includes two two-stage thermostats, each equipped with an integrated PI controller, for the control of two distinct areas. These thermostats are used to drive heating, cooling equipment, valves, 6-way valves, and 2- and 4-pipe fan coils.

Humidity Management

The humidity sensor manages the reading of the relative humidity of the environment and allows the threshold control with hysteresis of humidification and dehumidification devices.

User Interface

The device is equipped with an LCD display with adjustable backlighting and 4 mechanical keys (8 channels) for managing on/off commands, dimmers, shutters and blinds, or other programmable command and control functions. On the front, there is a capacitive bar with swipe function for implementing programmable KNX functions.

Visualization and Logic

A freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus. The device has 32 logical blocks for creating simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators. You can use predefined algorithms such as proportional temperature and humidity controls or dew point calculation.

Virtual Pocket Logic and Presence Detection

The device integrates “Virtual Pocket Logic” and a presence detection solution that can infer the presence of people in the room using one or more dedicated sensors. This function includes a magnetic sensor installed on the door and connected to a digital input, allowing the management of accurate presence information and the differentiation of multiple behaviors.

Compatibility and Installation

The device is compatible with the main standards and can be installed on boxes of 2 or 3 modules. The OL-U® KNX® series is available in various colors.
