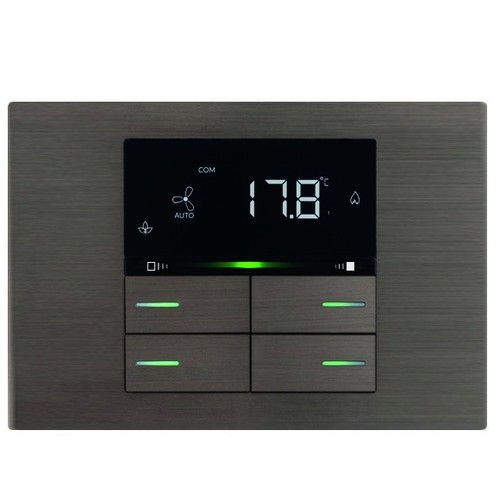

EELECTRON PO71A03MT-BR 71 METAL BRONZE PLATE - 3 MODULES

The EELECTRON PO71A03MT-BR device is a specialized component for home and industrial automation systems, compatible with the KNX protocol.

Technical characteristics

This device is designed to be installed in built-in boxes and has the following technical specifications:

• Dimensions of the device (without plate): 71x71x25 mm
• Dimensions of the frame for 3 modules: 130x92x11 mm
• EIB/KNX bus power supply with a voltage of 21 ÷ 32V DC and a maximum current of 30 mA

Conditions of Employment

The device is designed to operate in a temperature range between -5 °C and +45 °C and can be stored in a temperature range from -20 °C to +55 °C. The permitted relative humidity must not exceed 90% (non-condensing).

Design and Materials

The PO71A03MT-BR version has a bronze finish, offering an elegant appearance that is resistant to environmental conditions.

fitment

The device is designed to be mounted in built-in boxes, facilitating integration into existing automation systems.

Functionality

Although the detailed specifications of this model do not include temperature and humidity sensors or thermostats, it is compatible with KNX systems and can be configured to manage various commands and control functions through the ETS® application program.

Compatibility and Standards

The device is compatible with the main international standards, including Italian, German, English and Swiss standards, ensuring a wide range of applications in different contexts.
