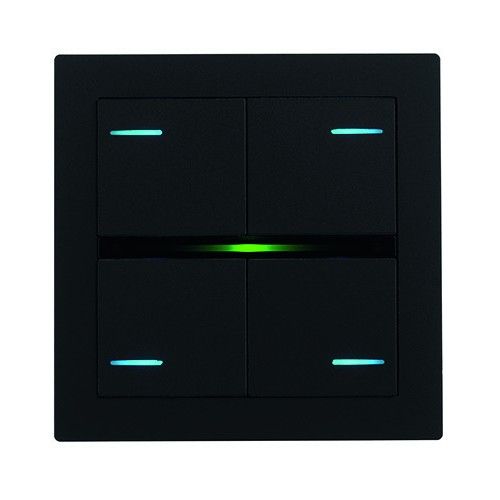

EELECTRON PO71A01FX-0720 71 FENIX PLATE BLACK 0720

The EELECTRON PO71A01FX-0720 device is a specialized component for home and industrial automation systems, integrated into the KNX protocol.

Technical characteristics

This device is characterized by a FENIX Ingo Black finish (code 0720), offering an elegant and resistant aesthetic appearance.

Dimensions and Assembly

The dimensions of the device, without the plate, are 71x71x25 mm, while the frame for 2 modules measures 92x92x11 mm. The assembly takes place through a built-in box.

Feeding

The device is powered via EIB/KNX bus with a voltage between 21 and 32V DC and a maximum current of 30 mA.

Conditions of Employment

The device is designed to operate in a temperature range between -5 °C and +45 °C, with a storage temperature ranging from -20 °C to +55 °C. The permitted relative humidity must not exceed 90% (non-condensing).

Functionality

The PO71A01FX-0720 is compatible with the KNX Data Secure protocol and can be configured using the ETS® application program.

Buttons and Commands

The device can be equipped with a kit of painted plastic buttons, offering different configuration options to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions.

Integration with Other Systems

This device is designed to integrate with various system components, such as thermostats, valves, and fan coils, allowing precise and personalized control of the environment.
