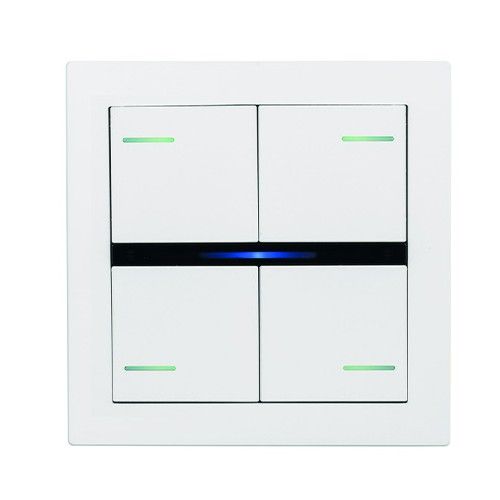

EELECTRON PO71A01FX-0030 71 FENIX PLATE WHITE 0030

<p The EELECTRON PO71A01FX-0030 product is a KNX control plate made of FENIX material, known for its resistance and aesthetic quality. This plate is specifically designed for integration into domestic and industrial automation systems.

Technical characteristics

<p The plate measures 71x71 mm and can be installed in a standard recessed box. The dimensions of the frame for 2 modules are 92x92x11 mm, while for 3 modules they are 130x92x11 mm.

Food and Communication

<p The device is powered via EIB/KNX bus with a voltage between 21 and 32V DC and a maximum consumption of 30 mA. The communication takes place via the KNX Data Secure protocol.

Conditions of Employment

<p The operating temperature of the plate is between -5 °C and +45 °C, while the storage temperature can vary from -20 °C to +55 °C. The permitted relative humidity must not exceed 90% without condensation.

Materials and Finishes

<p The PO71A01FX-0030 plate is made of FENIX Alaska 0030 White, an innovative material that offers a smooth surface resistant to fingerprints and scratches.

Configuration and Functionality

<p The plate can be configured using the ETS® application program and supports various command and control functions, including on/off, dimmer, roller shutters and blinds, as well as other customizable functions.

Integration with Other Devices

<p The device is compatible with the main automation standards and can be integrated with temperature and humidity sensors, two-stage thermostats and other control devices for effective environmental management.
