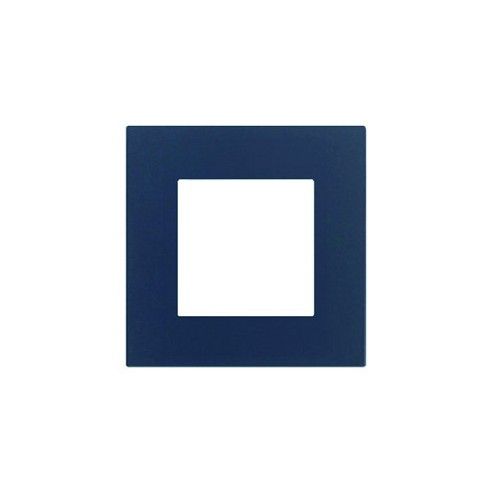

EELECTRON PO55A01FX-0754 55 FENIX BLUE PLATE 0754

The EELECTRON PO55A01FX-0754 device belongs to the OL-U® KNX® series and is characterized by an elegant design in Fenix® Blu Fes 0754.

Key Features

This KNX switch is designed for wall installation and has up to 8 mechanical keys, which can be configured to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions.

Configuration and Communication

The device can be configured through the ETS® application program and communicates with the KNX Data Secure protocol, ensuring high security and stability in communications.

Environmental Control

It integrates a two-stage thermostat for the control of two distinct areas, both equipped with an integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

On the front side there is a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Algorithms

The device has 32 logical blocks with which to create simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. You can use predefined algorithms such as proportional temperature and humidity controls or dew point calculation.

Virtual Pocket Logic

The device integrates the “Virtual Pocket Logic”, particularly useful in applications in hotel rooms. Through a magnetic sensor installed on the door and connected to a digital input, it is possible to manage accurate information on presence.

Mechanical and Installation Data

• Device dimensions (without plate): 71x71x25 mm
• 2-module frame dimensions: 92x92x11 mm
• Mounting: built-in box
• Power supply: via EIB/KNX 21 ÷ 32V DC bus, max 30 mA
• Operating temperature: -5 °C +45 °C
• Storage temperature: -20 °C +55 °C
• Relative humidity (non-condensing): max. 90%
