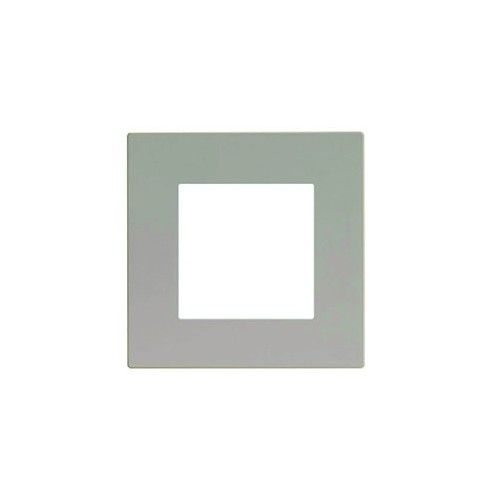

EELECTRON PO55A01FX-0748 55 FENIX BEIGE 0748 PLATE

<p The EELECTRON PO55A01FX-0748 product is a OL-U series KNX switch frame, designed to be compatible with the main European standards, including Italian, German, English and Swiss.

Technical characteristics

This frame is made of FENIX material, known for its strength and durability, and features an Arizona Beige color (code 0748).

Dimensions and Assembly

• Dimensions of the device (without plate): 71x71x25 mm
• Dimensions of the frame for 2 modules: 92x92x11 mm
• Mounting in a flush-mounted box

Food and Communication

• EIB/KNX bus power supply: 21 ÷ 32V DC
• Maximum consumption: 30 mA

Conditions of Employment

• Operating temperature: -5 °C +45 °C
• Storage temperature: -20 °C +55 °C
• Relative humidity (non-condensing): max. 90%

Functionality

The device is configurable through the ETS® application program and can communicate with the KNX Data Secure protocol. It is ideal for managing on/off commands, dimmers, shutters and blinds, as well as other programmable command and control functions.

Integration with Control Systems

• It integrates a two-stage thermostat for the control of two distinct areas
• Integrated PI controller for controlling heating, cooling, valves and fan coils
• Capacitive bar with swipe function for implementing programmable KNX functions
• Freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus

Logic and Algorithms

• 32 logical blocks for creating expressions with logical or threshold operators, or complex expressions with conditional algebraic operators
• Use of predefined algorithms such as proportional temperature and humidity controls or dew point calculation
• Integration of “Virtual Pocket Logic”
