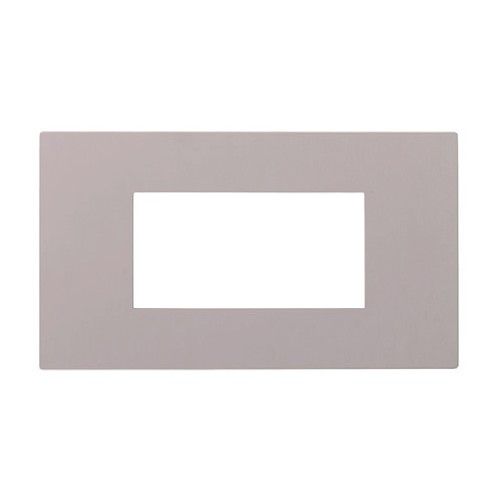

EELECTRON PO45A04FX-0748 45 FENIX 0748 BEIGE PLATE - 4 MODULES

<p The EELECTRON PO45A04FX-0748 product is a KNX switch from the OL-U series, characterized by a finish in FENIX Beige Arizona 0748.

Technical characteristics

<p This device is designed to be installed in a built-in box and has the following technical specifications:

• Dimensions of the device (without plate): 71x71x25 mm
• Dimensions of the frame for 2 modules: 92x92x11 mm
• EIB/KNX 21 ÷ 32V DC bus power supply, with a maximum consumption of 30 mA
• Operating temperature: -5 °C +45 °C
• Storage temperature: -20 °C +55 °C
• Relative humidity (non-condensing): max. 90%

Control Features

<p The device is equipped with various functions for managing commands and controls:

• Management of on/off commands, dimmers, shutters and blinds, or other programmable command and control functions
• Integration of a two-stage thermostat for the control of two distinct areas, both with integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves, 2- and 4-pipe fan coils
• Capacitive bar with swipe function for implementing programmable KNX functions
• Freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus

Logic and Programming

<p The device has 32 logical blocks to create complex logical and algebraic expressions:

• Implementing simple expressions with logical or threshold operators
• Using conditional algebraic operators for complex expressions
• Predefined algorithms such as proportional temperature and humidity controls or dew point calculation
• Integration of “Virtual Pocket Logic” for managing presence in environments such as hotel rooms
