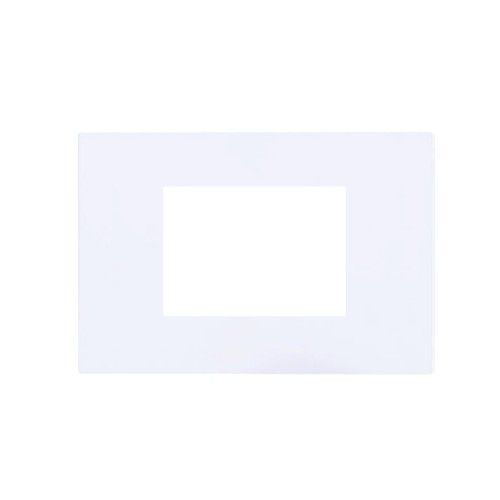

EELECTRON PO45A03FX-0030 45 FENIX PLATE WHITE 0030 - 3 MODULES

EELECTRON PO45A03FX-0030 Product Description

The EELECTRON PO45A03FX-0030 device is a specialized component for integration into the KNX automation system. This product is designed to be mounted in a 3-module box, making it compatible with major standards such as British, German and Italian.

Technical characteristics

The device includes an integrated temperature sensor and a rear 2-pin connector that can be configured as a digital or analog input. This allows the connection of an additional NTC temperature probe (eelectron codes TS01A01ACC or TS01B01ACC) for direct temperature measurements.

Power and Connectivity

The power supply is via EIB/KNX cable with a voltage between 21 and 32 Vdc. The rear inputs support free potential contacts (dry contacts) in digital mode, with a maximum connection cable length of 10 meters (braided cable). In analog mode, for the NTC temperature probe, the maximum length of the connecting cable is 20 meters (braided cable).

Button functionality

Each button can be configured to manage on/off controls, brightness adjustment, control of curtains and blinds, recall of scenes and control of sequences of objects. The device includes a two-stage room temperature controller with integrated PI to control heating and cooling equipment, valves, and 2- and 4-pipe fan coils.

Visualization and Personalization

The 9025 series, to which this device belongs, has an RGB LED bar on the front to display feedback or other values available on the KNX bus (a function available only in the RGB range). The devices are available in two ranges: STANDARD and RGB, with the possibility of using customizable glasses in the CUSTOM version, allowing you to illuminate personalized and interchangeable icons based on the associated function.

Mechanical Data

• Dimensions: 96 x 96 x 36 mm
• Assembly: compatible with British, German or Italian 3-module boxes
