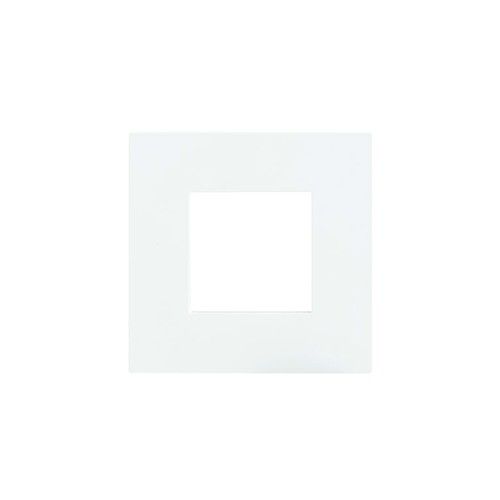

EELECTRON PO45A01PL-1 PLATE 45 WHITE PAINTED PLASTIC

The EELECTRON PO45A01PL-1 product belongs to the OL-U® series and represents an elegant and functional solution for the installation of wall plates.

Key Features

This product is designed to be installed on two or three-module built-in boxes, ensuring compatibility with the main international standards, including Italian, German, English and Swiss.

Material and Color

The PO45A01PL-1 plate is made of painted plastic and available in white.

Dimensions and Assembly

The dimensions of the plate are optimized to adapt to different installation needs. The size of the device without a plate is 71x71x25 mm, while the two-module frame measures 92x92x11 mm.

Conditions of Employment

• Operating temperature: -5 °C +45 °C
• Storage temperature: -20 °C +55 °C
• Relative humidity (non-condensing): max. 90%

Feeding

The power supply is via EIB/KNX bus with a voltage between 21 and 32V DC and a maximum consumption of 30 mA.

Integration with KNX Systems

The PO45A01PL-1 plate is designed to be integrated with KNX systems, allowing a customized configuration through the ETS® application program and communication with the KNX Data Secure protocol.

Applications

This product is ideal for various applications, including residential, hotel and commercial, offering an aesthetically pleasing and functionally efficient solution for controlling and managing various devices.
