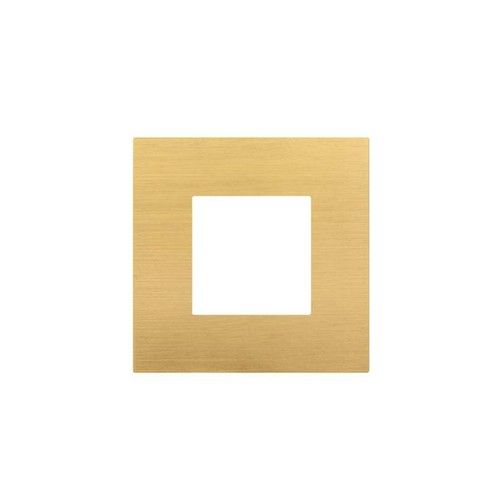

EELECTRON PO45A01MT-GO 45 METAL GOLD PLATE

The EELECTRON PO45A01MT-GO product is a high-quality plate designed for integration into domestic and industrial automation systems based on the KNX protocol.

Technical characteristics

This device is characterized by an elegant and functional design, with a metal frame available in the color gold (GO).

Dimensions and Assembly

• Dimensions of the device (without plate): 71x71x25 mm
• Dimensions of the frame for 2 modules: 92x92x11 mm
• Mounting on a flush-mounted box

Nutrition and Conditions of Use

• EIB/KNX bus power supply: 21 ÷ 32V DC, max 30 mA
• Operating temperature: -5 °C +45 °C
• Storage temperature: -20 °C +55 °C
• Relative humidity (non-condensing): max. 90%

Functionality

The PO45A01MT-GO device is designed to manage various commands such as on/off, dimmers, shutters and blinds, as well as other programmable command and control functions.

Control and Programming

• Configurable through the ETS® application program
• Communication with the KNX Data Secure protocol
• Integration of a two-stage thermostat for the control of two distinct areas
• Integrated PI controller for controlling heating, cooling, valves and fan coils

User Interface

• Capacitive bar with swipe function for implementing programmable KNX functions
• Freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus
• 32 logical blocks to create complex logical and algebraic expressions
• Integration of “Virtual Pocket Logic”

This product is ideal for applications in residential, commercial and industrial environments, offering a complete and flexible solution for the management of automation systems.
