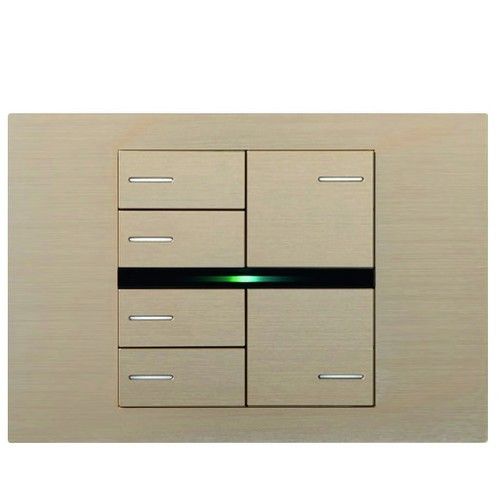

EELECTRON BK42MT-CH KIT 6 KEYS 4 LEFT + 2 RIGHT METAL CHAMPAGNE

Product Description

The KNX metal button of the OL-U® series, code SO08A01KNX, is a versatile and highly configurable control device, designed for wall installation. This device is equipped with up to 8 mechanical keys, which can be configured to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions.

Key Features

The KNX Metal Edition button includes metal finishes for the keys and plates, offering an elegant and robust appearance. The device is configured through the ETS® application program, and it supports communication with the KNX Data Secure protocol for high data security.

Control Functionality

The device integrates a two-stage thermostat for the control of two distinct areas, both with an integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

On the front side of the device there is a capacitive bar with swipe function, which allows the implementation of programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Programming

The device has 32 logical blocks for creating simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. Predefined algorithms are also available for proportional temperature and humidity control or dew point calculation.

Presence Detection

The device integrates the “Virtual Pocket Logic”, which is particularly useful in hotel rooms. Through a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can infer the presence of people in the room using one or more dedicated sensors and also detects accidental presences, differentiating multiple behaviors.

Compatibility and Installation

The KNX button of the OL-U® series is compatible with the main standards (Italian, German, English, Swiss) and can be installed on a box of 2 or 3 modules.
