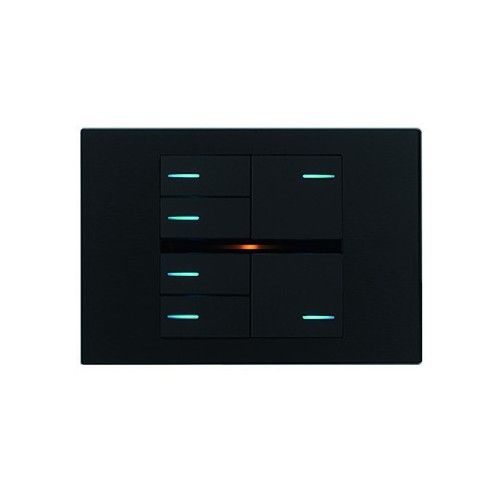

EELECTRON BK42FX-0720 KIT 6 KEYS 4 LEFT + 2 RIGHT FENIX BLACK 0720

EELECTRON BK42FX-0720 Product Description

The Eelectron OL-U KNX series BK42FX-0720 device is a wall-mount switch designed to manage various control and command functions within KNX installations. This product features an elegant design and a Fenix finish, available in various colors.

Key Features

The SO08A01KNX device of the OL-U KNX series includes up to 8 mechanical buttons (16 channels) to manage on/off commands, dimmers, shutters and shutters, or other programmable control and command functions. The configuration takes place through the ETS programming application.

Control Functionality

• Up to 8 mechanical buttons to manage different control functions.
• Integration of a capacitive bar with swipe function to implement programmable KNX functions.
• A freely configurable RGB LED bar to display states or quantities available on the KNX bus.

Temperature Control

• Integration of a two-stage thermostat for the control of two distinct areas, both with integrated PI controller to control heating, cooling, valves, 6-way valves, 2- and 4-pipe fan coils.

Logic and Programming

• 32 logical blocks available to implement simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators.
• Use of predefined algorithms for proportional temperature and humidity control or dew point calculation.

Presence Detection

• Integration of the “Virtual Holder Logic” for managing presence in hotel rooms, using a magnetic sensor installed on the door and connected to a digital input.
• Detection of unexpected presence and ability to differentiate different behaviors.

Compatibility and Installation

• Compatible with the main standards (Italian, German, English, Swiss).
• Can be installed on a box of 2 or 3 modules.
