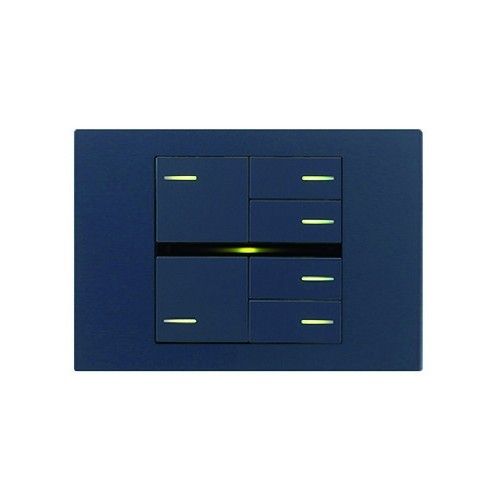

EELECTRON BK24FX-0754 KIT 6 KEYS 2 LEFT + 4 RIGHT FENIX BLUE 0754 -

MT Code: ELC_BK24FX-0754
Manufacturer Code: BK24FX-0754
Brand: EELECTRON

The KNX button of the OL-U® Fenix Edition series, code SO08A01KNX, is a versatile and highly configurable control device, designed for wall installation. This device features Fenix finishes for the keys and plates, offering an elegant and durable design.

Key Features

The KNX button is equipped with up to 8 mechanical keys, which can be configured to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions. Each button can manage up to 16 channels, offering great flexibility in applications.

Configuration and Communication

The device is configured through the ETS® application program, and it can communicate with the KNX Data Secure protocol, ensuring high security and stability in the automation network.

Temperature and Appliance Control

The device integrates a two-stage thermostat for the control of two distinct areas, both equipped with an integrated PI controller. This allows the control of heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

On the front side of the device there is a capacitive bar with swipe function, which allows the implementation of programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Algorithms

The device has 32 logical blocks with which to create simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. Predefined algorithms are also available for proportional temperature and humidity control or dew point calculation.

Presence Detection

The device integrates the “Virtual Pocket Logic”, particularly useful in applications in hotel rooms. Using a magnetic sensor installed on the door and connected to a digital input, the system manages accurate presence information and can infer the presence of people in the room using one or more dedicated sensors, also detecting accidental presences and differentiating multiple behaviors.
