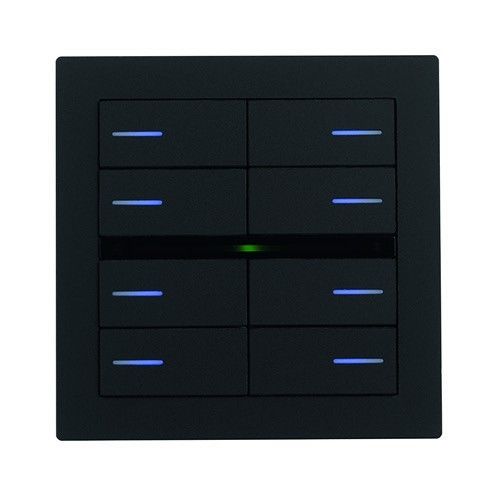

EELECTRON BK08FX-0720 KIT 8 RECTANGULAR KEYS FENIX BLACK 0720 - LINE
- MT Code
- ELC_BK08FX-0720
- Manufacturer Code
- BK08FX-0720
- Brand
- EELECTRON


The EELECTRON BK08FX-0720 kit is a KNX control system intended for wall installation, characterized by an elegant design and versatile functionality.
Key Features
This kit includes 8 rectangular keys in FENIX Black 0720 finish, offering a high-quality aesthetic appearance and a fingerprint-resistant, easy-to-clean surface.
Technical Specifications
- Device dimensions (without plate): 71x71x25 mm
- Dimensions of the frame for 2 modules: 92x92x11 mm
- Dimensions of the frame for 3 modules: 130x92x11 mm
- Mounting: built-in box
- Power supply: via EIB/KNX 21 ÷ 32V DC bus, max 30 mA
Conditions of Employment
- Operating temperature: -5 °C +45 °C
- Storage temperature: -20 °C +55 °C
- Relative humidity (non-condensing): max. 90%
Functionality
The BK08FX-0720 kit is compatible with the KNX protocol and can be configured through the ETS application. The mechanical keys can manage on/off commands, dimmers, blackout curtains and blinds, as well as other programmable control and command functions.
Integration and Personalization
- Integration with the KNX bus for managing various home automation functions
- Capacitive bar with swipe function for implementing programmable KNX functions
- Configurable RGB LED bar to display states or other quantities available on the KNX bus
- 32 logical blocks available to implement complex logical or algebraic expressions
This product is ideal for installations in residential and commercial environments where a combination of aesthetics and advanced functionality is required in the control of home automation.
Codice a barre | 8000002759083 |
---|---|
Codice Produttore | BK08FX-0720 |
Brand | EELECTRON |
