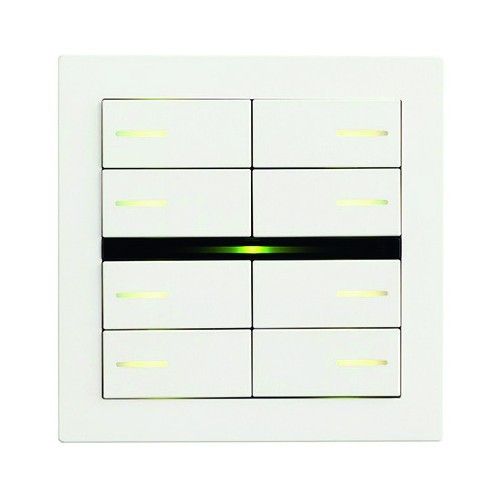

EELECTRON BK08FX-0032 KIT 8 RECTANGULAR KEYS FENIX WHITE 0032 - LINE
- MT Code
- ELC_BK08FX-0032
- Manufacturer Code
- BK08FX-0032
- Brand
- EELECTRON


EELECTRON BK08FX-0032 Product Description
The OL-U KNX metal button, code SO08A01KNX, is a high-quality device from Eelectron's OL-U® KNX® series, designed for wall installation and characterized by Fenix finishes for the keys and plates.
Key Features
This button is equipped with up to 8 mechanical keys, which can be configured to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions. Each button can manage up to 16 channels.
User Interface
On the front side of the device there is a capacitive bar with swipe function, which allows the implementation of programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.
Environmental Control
The device integrates a two-stage thermostat for the control of two distinct areas, both with an integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.
Logic and Programming
The button has 32 logical blocks with which to create simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. You can use predefined algorithms such as proportional temperature and humidity controls or dew point calculation.
Presence Detection
The device integrates the “Virtual Pocket Logic”, which is particularly useful in hotel rooms. By means of a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can infer the presence of people in the room using one or more dedicated sensors and also detects an accidental presence, differentiating multiple behaviors.
Configuration and Communication
The device can be configured through the ETS® application program and communicates with the KNX Data Secure protocol, ensuring high security and compatibility with the KNX system.
Codice a barre | 8000002759076 |
---|---|
Codice Produttore | BK08FX-0032 |
Brand | EELECTRON |
