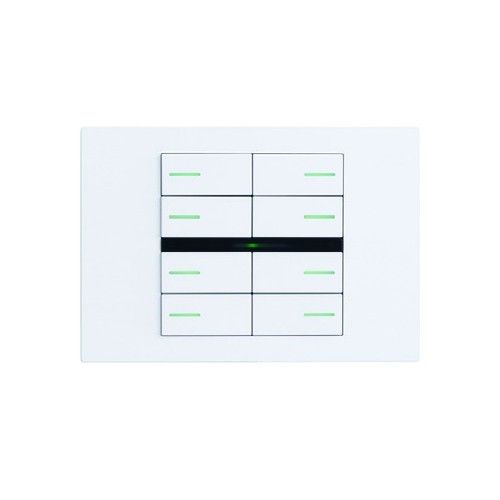

EELECTRON BK08FX-0030 KIT 8 RECTANGULAR KEYS FENIX WHITE 0030 - LINE

MT Code: ELC_BK08FX-0030
Manufacturer Code: BK08FX-0030
Brand: EELECTRON

The product EELECTRON BK08FX-0030 belongs to the OL-U® KNX® series and is available in the FENIX BIANCO 0030 version. This device is designed for wall installation and offers a complete solution for managing home and industrial automation systems.

Key Features

The SO08A01KNX button panel is equipped with up to 8 mechanical keys, which can be configured to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions. Each button can manage up to 2 channels, for a total of 16 channels available.

Configuration and Communication

The device can be configured using the ETS® application program and supports communication with the KNX Data Secure protocol, ensuring high security and stability in data transmission.

Environmental Control

It integrates a two-stage thermostat for the control of two distinct areas, both with integrated PI controller. This allows the control of heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

On the front side of the device there is a capacitive bar with swipe function, which allows the implementation of programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Algorithms

The device has 32 logical blocks with which to create simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. Predefined algorithms are also available for proportional temperature and humidity control or dew point calculation.

Virtual Pocket Logic

The device integrates the “Virtual Pocket Logic”, particularly useful in applications in hotel rooms. Through a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can infer the presence of people in the room using one or more dedicated sensors and also detects accidental presences, differentiating multiple behaviors.
