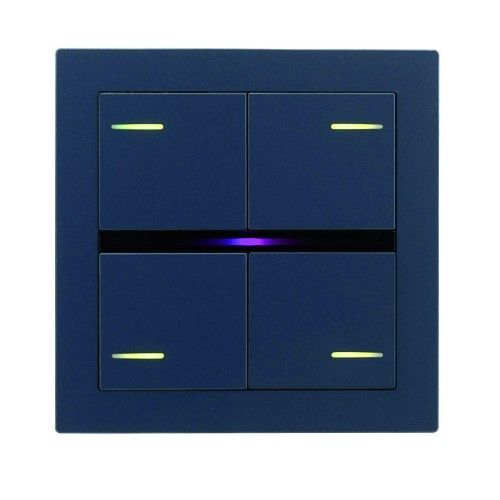

EELECTRON BK04FX-0754 KIT 4 SQUARE KEYS FENIX BLUE 0754 - LINE

Product Description

The KNX Fenix OL-U button, code SO08A01KNX, is an innovative control device designed for wall installation and is part of the OL-U® KNX® series. This button features Fenix key finishes and plates, offering an elegant design and high durability.

Key Features

- The device is equipped with up to 8 mechanical keys (16 channels) that can be configured to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions. - The configuration takes place through the ETS® application program and the device can communicate with the KNX Data Secure protocol.

Environmental Control

- It integrates a two-stage thermostat for the control of two distinct areas, both with integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

- On the front side there is a capacitive bar with swipe function for implementing programmable KNX functions. - A freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Programming

- The device has 32 logical blocks with which to create simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators. - It is possible to use predefined algorithms such as proportional temperature and humidity controls or dew point calculation. - It integrates the “Virtual Pocket Logic” to manage accurate presence information, for example in environments such as hotel rooms, using magnetic sensors installed on the door and connected to digital inputs.

Presence Detection

- The presence detection solution can infer the presence of people in the room using one or more dedicated sensors. - It also detects an accidental presence and is able to differentiate multiple behaviors.

Compatibility and Installation

- The OL-U® KNX® series is available in various colors and can be installed on a box of 2 or 3 modules, compatible with the main standards (Italian, German, English, Swiss).
