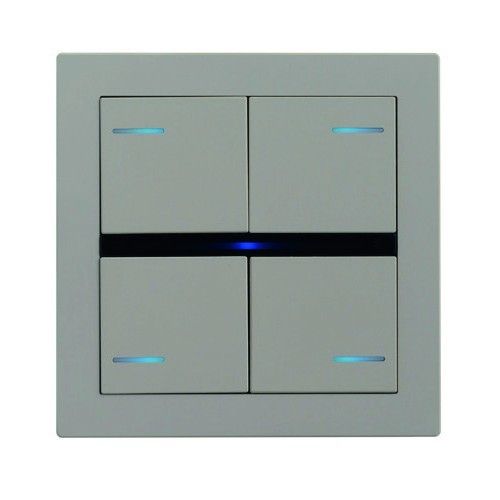

EELECTRON BK04FX-0748 KIT 4 SQUARE KEYS FENIX BEIGE 0748 - LINE

Product Description

The KNX Fenix OL-U button, code SO08A01KNX, is an innovative control device designed for integration into domestic and industrial automation systems. Made with Fenix finishes for the keys and plates, this button offers a combination of style and functionality.

Key Features

The SO08A01KNX push button panel of the OL-U® KNX® series is designed for wall installation and has up to 8 mechanical keys, which can be configured to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions.

Configuration and Communication

The device can be configured through the ETS® application program and communicates with the KNX Data Secure protocol, ensuring high security and reliability in communications.

Thermal Control and Other Functions

The button integrates a two-stage thermostat for the control of two distinct areas, both with an integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

On the front side of the device there is a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Algorithms

The device has 32 logical blocks with which to create simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators. You can use predefined algorithms such as proportional temperature and humidity controls or dew point calculation.

Presence Detection

The device integrates the “Virtual Pocket Logic”, particularly useful in applications in hotel rooms. By means of a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can infer the presence of people in the room using one or more dedicated sensors and also detects an accidental presence, differentiating multiple behaviors.

Compatibility and Installation

The OL-U® KNX® series is available in various colors and can be installed on a box of 2 or 3 modules, complying with the main standards (Italian, German, English, Swiss).
