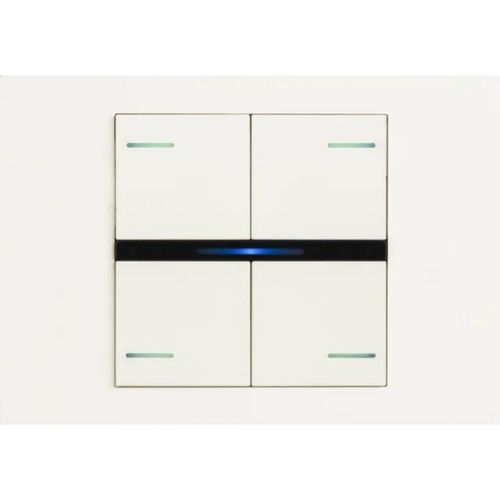

EELECTRON BK04FX-0030 KIT 4 SQUARE KEYS FENIX WHITE 0030 - LINE

The KNX Fenix OL-U button, code SO08A01KNX, is a versatile and highly configurable control device, designed for wall installation in the OL-U® KNX® series.

Key Features

• Fenix key finishes and plates, ensuring an elegant and durable appearance.
• Up to 8 mechanical keys (16 channels) configurable to manage on/off commands, dimmers, shutters and blinds, or other programmable command and control functions.
• Configurable through the ETS® application program and compatible with the KNX Data Secure protocol.

Environmental Control

The device integrates a two-stage thermostat for the control of two distinct areas, both with an integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

On the front side there is a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Algorithms

The device has 32 logical blocks with which to create simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators. You can use predefined algorithms such as proportional temperature and humidity controls or dew point calculation.

Presence Detection

The device integrates the “Virtual Pocket Logic”, which is particularly useful in hotel rooms. By means of a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can infer the presence of people in the room using one or more dedicated sensors and also detects an accidental presence, differentiating multiple behaviors.

Compatibility and Installation

The OL-U® KNX® series is available in various colors and can be installed on a box of 2 or 3 modules, compatible with the main standards (Italian, German, English, Swiss).
