SATEL SLIM-DUAL-LUNA Dual technology PIR + MW motion detector with emergency light - adjustment of detection sensitivity with OPT-1 remote control

SATEL SLIM-DUAL-LUNA Dual technology PIR + MW motion detector with emergency light - adjustment of detection sensitivity with OPT-1 remote control

MT Code
SAT_SLIM-DUAL-LUNA
Manufacturer Code
SLIM-DUAL-LUNA
Brand
SATEL
SATEL
extra sconto di benvenuto
Description
Dual technology PIR + MW motion detector with emergency light - adjustment of detection sensitivity with OPT-1 remote control (BRACKET-D joint included)

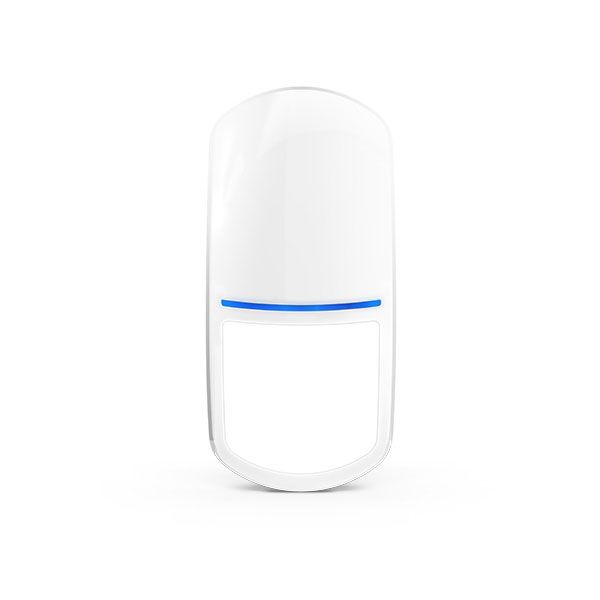

SLIM-DUAL-LUNA is the indoor dual technology detector (PIR and microwave in K band 24GHz) of the SLIM series with white lighting LEDs. It has a detection area of 20 m x 24 m with an angle of 90°

The standard lens can be replaced with the LR long-range lens (28 m x 3.6 m) and the CT curtain lens (22 m x 2 m).

SLIM-DUAL-LUNA is comfortable and practical to install. Opening the housing is quick and simple, without the need to remove the closing screw

The electronic board can be extracted without acting on the terminals. The wires are fixed to a removable terminal block onto which the electronic board is inserted. The detector has built-in 1.1kΩ, 4.7kΩ and 5.6kΩ balancing resistors.

All adjustments (including LED brightness and color settings) can be performed manually by acting on the electronic board, or via the OPT-1 remote control.

It is equipped with a set of white LEDs for lighting, which can be used for example as a night courtesy lamp or an emergency light source in the event of a power failure.

On LUNA models it is possible to remotely switch between two sensor sensitivity levels. This allows you to change motion detection settings, for example based on the status of the area to which the detector is assigned. If the zone is disarmed, lighting can be turned on in response to the slightest movement. When the area is armed, the detector can use the settings to eliminate unwanted alarms.

The detector is supplied with BRACKET-D bracket, with internal cable passage, which allows you to rotate the detector 35° degrees vertically and 90° horizontally

Characteristics:
  • complies with the requirements of EN 50131 Grade 2
  • motion detection via infrared sensor (PIR) microwave sensor (MW)
  • Adjustable detection sensitivity for both sensors
  • digital motion detection algorithm
  • digital temperature compensation
  • digital filter for processing the signals received from the microwave sensor, which guarantees immunity to false alarms caused by the electrical network and discharge lamps (e.g. neon)
  • wide-angle lens designed specifically for SLIM Line detectors
  • immunity to pets up to 20 kg
  • integrated balancing resistors (2 X 1.1 kΩ)
  • LED indicator
  • configurable LED indicator color (4 colors available)
  • enable/disable LED indicator remotely
  • supervision of the detection system and the supply voltage
  • tamper protection against opening of the housing
Data Sheet
Codice Produttore SLIM-DUAL-LUNA
Brand SATEL
