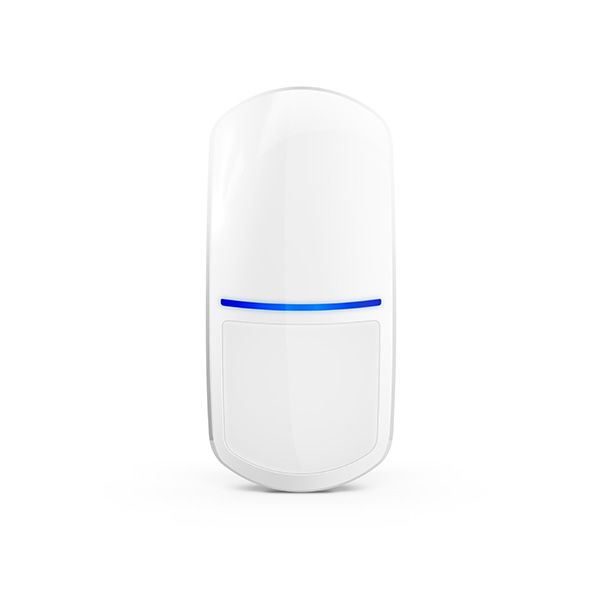

SATEL SLIM-DUAL-PRO Dual technology motion detector PIR + MW - detection sensitivity adjustment with OPT-1 remote control
- MT Code
- SAT_SLIM-DUAL-PRO
- Manufacturer Code
- SLIM-DUAL-PRO
- Brand
- SATEL
![SATEL SATEL](https://images.ctfassets.net/g6z2so3d6429/1tWCoB0AZf2vA7cIXRLCyM/af4f6f0caf58c71d596f24573fb189bf/satel_160x160.jpg?w=260&h=260&fm=webp&q=80)
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
Dual technology motion detector PIR + MW - detection sensitivity adjustment with OPT-1 remote control (antimask active on IR - GRADE 3 - BRACKET-D joint included)
Dual technology motion detector with active IR anti-masking, 20 m x 24 m 90°
The standard lens can be replaced with the LR long-range lens (28 m x 3.6 m) and the CT curtain lens (22 m x 2 m).
The PRO models are equipped with an active anti-masking function via infrared radiation. Any attempts to deactivate the devices by covering the lenses (for example with tape, paint or clear varnish) will be reported.
The electronic board can be extracted without acting on the terminals. The wires are fixed to a removable terminal block onto which the electronic board is inserted. The detector has built-in 1.1kΩ, 4.7kΩ and 5.6kΩ balancing resistors.
Data Sheet
Codice Produttore | SLIM-DUAL-PRO |
---|---|
Brand | SATEL |
Download
SLIM DUAL PRO IT
|
118.1 kB |
