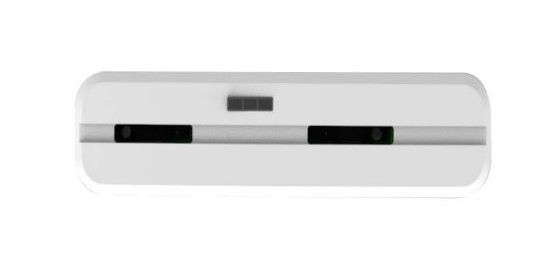

POLITEC MINI NAT SLIM Threshold mount infrared detector

NAT is the range of low-absorption, dual-technology sensors characterized by a microwave that is always active 24 hours a day: thanks to this, zero consumption for passages, detection in the event of a race, no stand by and antimask even on a microwave. NAT is very compact in size and is therefore suitable for protecting small openings such as windows and doors, positioned horizontally or vertically on the upper corner. The dual technology makes it possible to protect both entrances and sensitive external areas, if not particularly large, and provides high reliability as it is difficult to tamper with and able to capture any movement in the environment. It is ideal for outdoor installations for typical façade protection thanks to the possibility of adjusting the flow rate using two independent trimmers, at the IP65 grade and the infrared section that adapts to temperature changes to keep the coverage suitable. It is also equipped with a roof that protects it from the sun's rays and ensures that sensitivity is not reduced, in addition to the protective functionality of the sensor itself against atmospheric agents. MINI NAT SLIM is the curtain sensor designed for the protection of entrances (doors and windows) for both outdoor and indoor use with an IP65 degree of protection. Thanks to its small size, high digital signal processing can be placed in any type of installation with extreme speed and high efficiency (5 kg pet immunity). The technological innovation applied to the MINI NAT SLIM curtain sensor is called DAC (Direction, Approaching, Crossing) and makes it possible to discriminate the direction of detection, approach and crossing. The ability of the sensor to discriminate movement in or out of the area to be protected avoids improper interventions and the possibility of detecting the complete crossing of the coverage area, combined with the antimasking function, represent decisive characteristics in external detections. The sensor also has anti-masking functions, insect immunity, thermal self-compensation and is designed to generate an alarm only if the curtain is crossed. The tamper on the lid and the anti-tear button allow an additional level of security, validating the use of the sensor even in areas of maximum risk.
