ELMO DT93485 DT93485 Differentiated Frequency Detector 10.587 GHz
- MT Code
- ELM_DT93485
- Manufacturer Code
- DT93485
- Brand
- ELMO

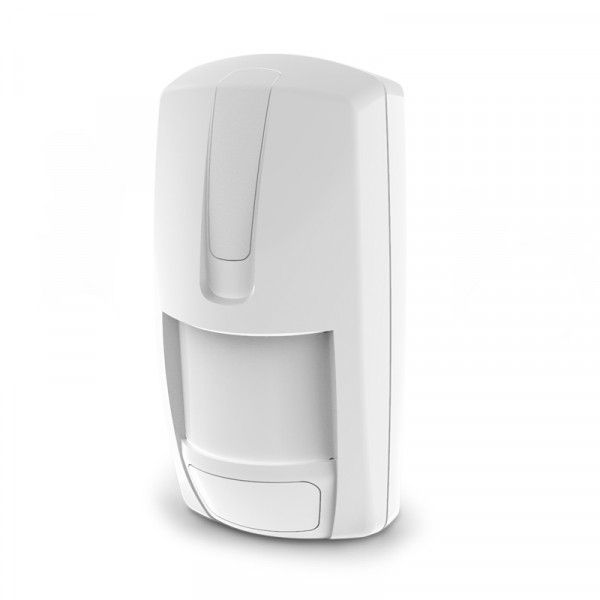

DT93485 differential frequency detector 10.587 GHz
DT93485 is a long-range (23m) MW+IR dual-technology indoor volumetric detector with RS485 ULTRABUS interface. This feature makes it suitable for protecting large indoor environments such as corridors, large rooms or supermarket aisles. It is equipped with an RS485 ULTRABUS interface and for this reason it can be connected directly to the serial line of the control unit, allows a considerable reduction of devices in the field (concentrators) and is programmable and manageable directly via BrowserOne software (both locally and from a remote location). Three external colored LEDs indicate the functional status of the sensor. DT93485 also implements anti-blinding, anti-masking and anti-sneak functions. The characteristics of the detector are completed by a refined aesthetic, the small size and the particular shape of the bottom of the container to which an optional SND3D joint can be added for inclined installation. DT93485 is certified IMQ-Safety Systems EN50131-2-4 grade 3 (grade 1 if the optional SND3D joint is used), environmental class II
Codice a barre | 8000002667562 |
---|---|
Codice Produttore | DT93485 |
Brand | ELMO |
TM DT93485 2022 07 EN
|
3.8 MB |
