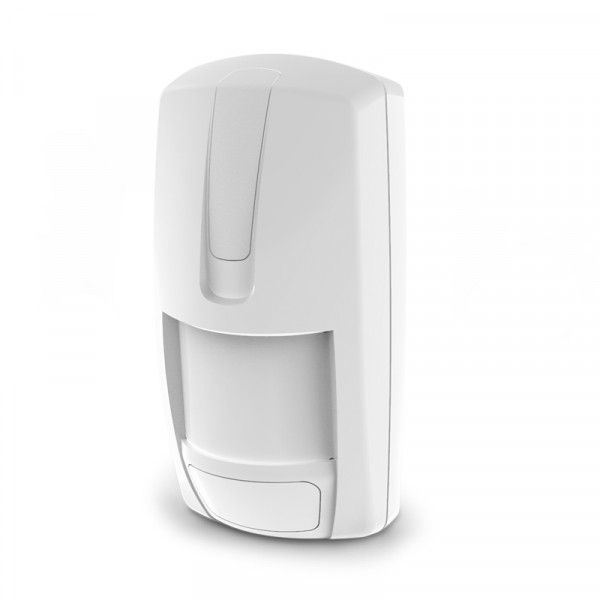

ELMO DT93 DT93 detector with 27 m range at a differential frequency of 10.587 GHz

DT93 detector with 27 m range at a differentiated frequency 10.587 GHz

DT93 is an internal wired volumetric detector with dual MW+IR technology with a long range (23 m) with a relay interface. This feature makes it suitable for protecting large indoor environments such as corridors, large rooms or supermarket aisles. The sensor can be programmed in some functions using internal dipswitches (including “AND” or “OR” operation). Three external colored LEDs indicate the functional status of the sensor. DT93 also implements anti-blinding, anti-masking and anti-sneak functions. The characteristics of the detector are completed by a refined aesthetic, the small size and the particular shape of the bottom of the container to which an optional SND3D joint can be added for inclined installation. DT93 is certified IMQ-Safety Systems EN50131-2-4 for grade 3 (grade 1 if the optional joint is used) and environmental class II
