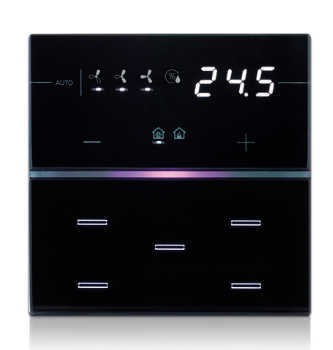

EELECTRON 9025GT07B03-R DOUBLE GLAZED - RESIDENTIAL DISPLAY - BLACK + RGB

The KNX EELECTRON 9025GT07B03-R Thermostat/Humidistat is a high-precision temperature and humidity controller, designed for integration into domestic and commercial automation systems based on the KNX protocol.

Key Features

This device includes 7 configurable capacitive buttons, allowing the management of various commands such as on/off, dimmers, shutters and blinds, as well as the execution and learning of scenarios, sequences of objects and local thermostat commands.

Temperature and Humidity Control

The 2-stage thermostat is equipped with an integrated PI controller for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils. It includes an on-board temperature probe and a rear input configurable as digital or analog, allowing the connection of an additional NTC probe (eelectron codes TS01A01ACC or TS01B01ACC) for precise temperature measurements.

A version with integrated temperature and relative humidity sensor is also available, which can be used to control actuators for the regulation of ambient relative humidity.

Interface and Visualization

The device has an RGB LED bar on the front side for displaying operating states or other quantities available on the KNX bus, ensuring a clear indication of system conditions.

Assembly and Compatibility

The thermostat can be installed on a 2-module box and complies with the main international standards (Italian, German, English, etc.). The compatibility with different types of boxes (English, German or Italian) makes it easy to integrate them into various environments.

Design and Personalization

The glass covers are available in versions for residential or hotel applications and can be customized with CUSTOM glasses, which allow personalized and interchangeable icons associated with the configured functions to be backlit.

Technical Specifications

• Dimensions: 96 x 96 x 36 mm
• Power supply: EIB/KNX bus 21 ÷ 32 Vdc
• Current consumption: max 20 mA @ 29V, max 24 mA @ 21V (economy mode), max 12 mA @ 29V
• Digital inputs: for potential-free contacts, maximum cable length ≤ 10 m (braided cable)
• Analog input for temperature probe: can be connected to an NTC probe, maximum cable length ≤ 20 m (braided cable)
• Weight (with glass): ca. 130g (220g)
• Housing material: plastic (PC-ABS)
