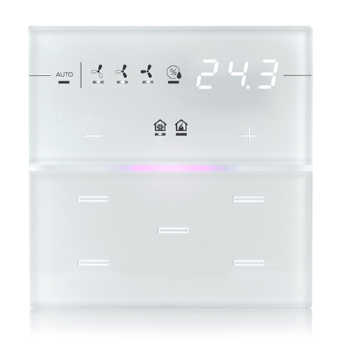

EELECTRON 9025GT07B01-H DOUBLE GLASS - HOTEL DISPLAY - WHITE +RGB

<p The EELECTRON 9025GT07B01-H thermostat is a high-quality KNX® temperature and humidity controller, designed to meet the needs of thermoregulation and humidity control in residential and hotel environments.

Key Features

<p The device is equipped with 7 configurable capacitive buttons, allowing the management of various commands such as on/off, dimmers, shutters and blinds, as well as the management of scenarios, sequences of objects and local thermostat controls.

Temperature and Humidity Control

<p The 9025GT07B01-H includes a 2-stage thermostat with an integrated PI controller, ideal for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils. The version with integrated temperature and relative humidity sensor allows the control of actuators for the regulation of ambient humidity.

Sensors and Inputs

<p The device has an on-board temperature probe and a rear input that can be configured as digital or analog. It is possible to connect an additional NTC probe (eelectron codes TS01A01ACC or TS01B01ACC) to obtain a second temperature measurement.

Visualization and Feedback

<p The presence of an RGB LED bar on the front side allows the visualization of the operating states of the thermostat and other quantities available on the KNX bus.

Glass Covers

<p The thermostat is available with glass covers for residential and hotel applications, even in a CUSTOM version. CUSTOM glasses can backlight personalized and interchangeable icons associated with the configured functions.

Installation and Compatibility

<p The device can be installed in boxes of 2 modules and is compatible with the main standards (Italian, German, English, etc.). The power supply is via EIB/KNX bus with a voltage between 21 and 32 Vdc.

Mechanical Data

• Dimensions: 96 x 96 x 36 mm
• Weight (with glass): ca. 130g (220g)
• Housing material: plastic (PC-ABS)

Food and Consumption

• EIB/KNX bus power supply: 21 ÷ 32 Vdc
• EIB/KNX current consumption: max 20 mA @ 29V, max 24 mA @ 21V (economy mode), max 12 mA @ 29V

Digital and Analog Inputs

• Rear input configurable as digital or analog
• For potential-free contacts (clean contacts)
• Maximum connection cable length: ≤ 10 m (braided cable) for digital inputs, ≤ 20 m (braided cable) for temperature probe
