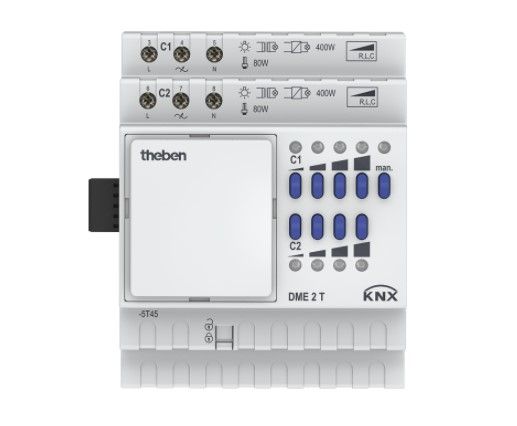

THEBEN 4930275 DME 2 T KNX

Function Description

• Universal actuator for 2-channel brightness adjustment MIX2
• MIX2 expansion module
• For expanding up to 6 channels
• For adjusting the brightness of incandescent lamps, high and low voltage halogen lamps, adjustable LEDs
• Also suitable for dimming dimmable energy-saving lamps
• Also suitable for controlling fans
• Up to 2 MIX or MIX2 expansion modules can be connected to a basic module
• Luminaire and KNX bus module can be replaced independently
• Removable KNX bus module that allows the replacement of devices without reprogramming
• Manual commissioning and use of the switching actuators are also possible without a KNX bus module
• Switching status indication with LED for each channel
• Manual control on the device (even without bus voltage)
• Regulation power: 400 W/VA per channel or 800 W/VA in parallel operation
• When using the DMB 1 T KNX regulation booster, the power can be expanded to 300 W/VA.
• Power up to 2000 W/VA from up to 4 boosters possible
• Automatic load recognition (can be deactivated)
• For R, L and C loads
