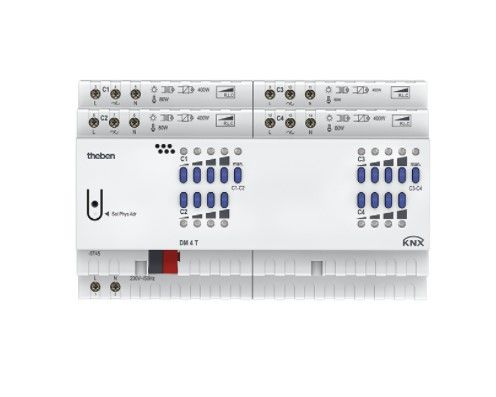

THEBEN 4940275 DM 4 T KNX

Function Description

• Universal actuator for 4-channel brightness adjustment FIX2
• For adjusting the brightness of incandescent lamps, high and low voltage halogen lamps, adjustable LEDs
• Also suitable for dimming dimmable energy-saving lamps
• Also suitable for controlling fans
• Switching status indication with LED for each channel
• Manual control on the device (even without bus voltage)
• Regulation power: 400 W/VA per channel or 800 W/VA in parallel operation
• When using the DMB 1 T KNX regulation booster, the power can be expanded to 300 W/VA. Power up to 2000 W/VA from up to 4 boosters possible
• Automatic load recognition (can be deactivated)
• For R, L and C loads
