TZ19-W-V4 DIVUS TOUCHZONE 19 WHITE - touch panel for buildings

<p The DIVUS TZ19-W-V4 is an ultra compact touch panel designed for wall mounting, ideal for home and industrial automation applications.

Key Features

<p The panel is equipped with an Android 9 operating system, ensuring a stable and customizable platform for your applications.

Display and Design

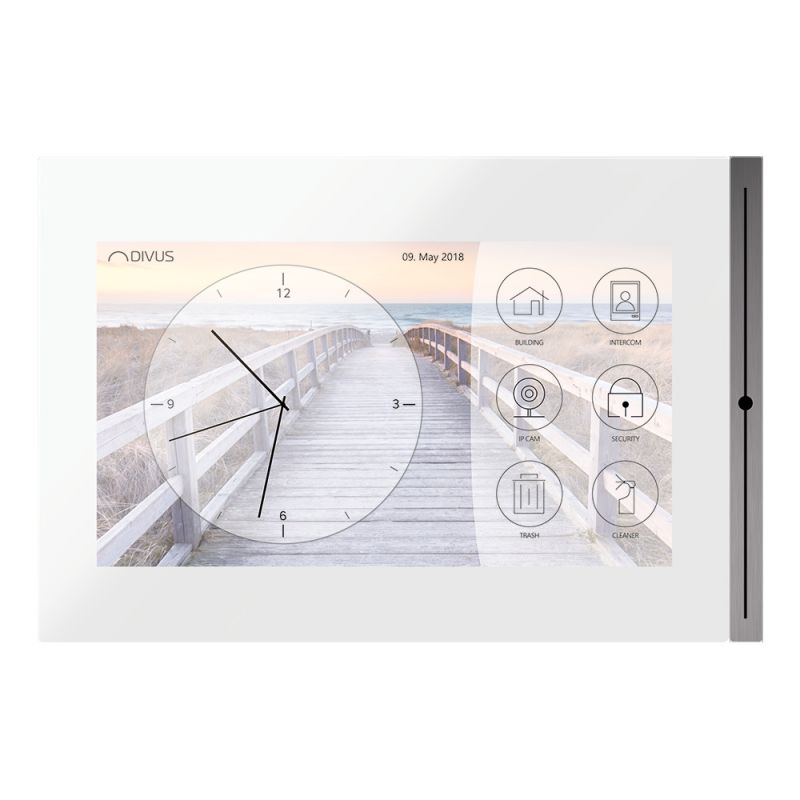

<p The DIVUS TZ19-W-V4 features a 19-inch display with ultra clear glass, offering a homogeneous and smooth surface with an aluminum side edge.

Power and Connectivity

<p The panel is powered via a DC in connector, with a supply voltage between 12-32 VDC. It does not support Power over Ethernet (PoE), unlike the 7, 10, and 15-inch variants [2).

Interfaces and Connectivity

<p The panel has several interfaces:

• 1 x 45-degree Ethernet over RJ45 with 802.3at™ support
• 1 x WiFi 802.11 a/b/g/n (optional)
• 1 x Bluetooth 4.0 LE (optional)
• 2 x USB 2.0 (external)
• 1 x mini USB OTG
• 1 x RS-232/422/485 (optional on pinheader)
• GPIO - 4 x Input/4 x Output for 4 relays with max. 100 mA/5VDC

Sensors and Multimedia

<p The panel includes:

• Proximity sensor
• Brightness sensor
• G-sensor for automatic display orientation in portrait or landscape mode
• External microphone with echo cancellation for two-way intercom communication
• 2 Watt RMS external speaker
• MicroSDHC slot

Environmental Conditions and Safety

<p The panel is designed to operate in a temperature range from 0°C to 30°C and relative humidity within standard specifications. It complies with electromagnetic compatibility and safety standards such as IEC 63044-1:2017, IEC 63044- 5-1:2019, and EN 62368-1:2014.
