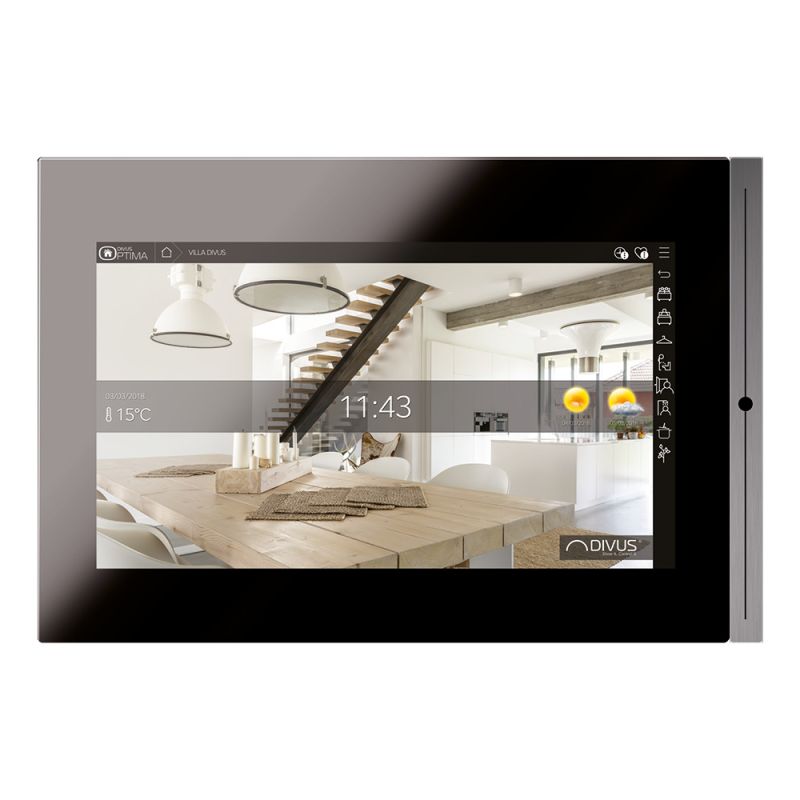

TZ19-B-V4 DIVUS TOUCHZONE 19 BLACK - touch panel for buildings

The DIVUS TZ19-B-V4 is a touch panel designed for wall installation, ideal for viewing and control applications in building and home automation environments.

Key Features

This device is equipped with a 47.0 cm (18.5 inch) multitouch display with a capacitive touchscreen, ensuring a precise and immediate response to user inputs.

Operating System and Processor

The TZ19-B-V4 uses the Android 9 operating system, which offers a stable and customizable platform for your specific applications.

Design and Construction

The panel has an ultra compact design with an aluminum frame and a black front glass. The glass surface is homogeneous and smooth, making it easy to clean and maintain.

Interfaces and Connectivity

The device includes several interfaces for full connectivity:

• 1 x Ethernet over RJ45 with IEEE Std 802.3at™ support
• 1 x 802.11 a/b/g/n WiFi (optional)
• 1 x Bluetooth 4.0 LE (optional)
• 2 x USB 2.0 (external)
• 1 x mini USB OTG
• 1 x RS-232/422/485 (internal, optional)
• GPIO - 4 x inputs/4 x outputs for 4 relays with a maximum of 100 mA/5VDC

Multimedia Features

The panel is equipped with:

• 2 Watt RMS Speaker (external)
• Microphone (external) with echo cancellation for two-way communication

Sensors and Orientation

The device includes:

• Proximity sensor
• Brightness sensor
• G Sensor for automatic orientation in portrait and landscape mode

Environmental Conditions and Safety

The TZ19-B-V4 is designed to operate under specific environmental conditions:

• Temperature: from 0°C to 30°C
• Relative humidity: within standard limits for electronic devices

Power Consumption

The power consumption of the device is a maximum of 30 W without peripherals.
