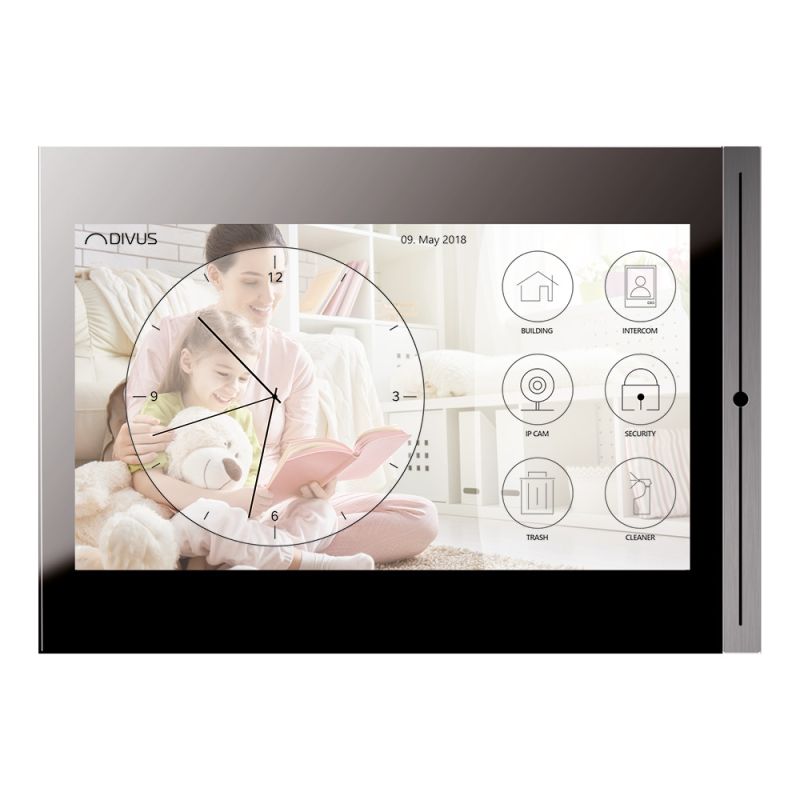

TZ15-B-V4 DIVUS TOUCHZONE 15 BLACK - touch panel for buildings

<p The DIVUS TOUCHZONE 15 BLACK - V4 (TZ15-B-V4) is a high-quality touch panel designed to integrate perfectly into residential and commercial environments. This device combines the functionality of a smartphone with those for managing building security and comfort.

Technical characteristics

<p The panel features a 15.6-inch (39.6 cm) multitouch display with capacitive technology and a TFT screen with LED backlight. The display resolution is 1366x768 pixels, with a contrast ratio of 500:1 and a brightness of 300 cd/m².

Processor and Memory

<p The DIVUS TOUCHZONE 15 BLACK - V4 is equipped with a 1.5 GHz Quad Core Cortex-A53 processor and has 2 GB of RAM, which can be optionally increased to 4 GB. The storage memory consists of 16 GB of eMMC flash memory, with the possibility of expansion through a microSD slot.

Interfaces and Connectivity

<p The panel offers several connectivity options, including a LAN/Ethernet interface with PoE+ support (IEEE Std 802.3at™), optional 802.11 a/b/g/n WiFi, optional Bluetooth 4.0 LE, and two USB 2.0 ports. In addition, there is an audio output with a 2 Watt RMS speaker and an external microphone with an echo cancellation function for two-way communication.

Sensors and Functionality

<p The panel is equipped with a proximity sensor, a brightness sensor and an accelerometer for automatic display orientation. The panel surface is made of glass with an aluminum edge, ensuring an elegant appearance and an intuitive user experience.

Feeding

<p The panel power can be supplied via PoE+ or through a 12-32 V DC power supply. The maximum power consumption without peripherals is 25 W.

Software and Applications

<p The DIVUS TOUCHZONE 15 BLACK - V4 works with the Android 6.0.1 operating system and allows the installation of applications through APK files, thanks to the DIVUS Synchronizer management tool. This allows the panel to be used to control various aspects of building management, such as temperature, lighting, shading and much more.

Use

<p The panel can be used as a home audio control, as an elegant intercom station, as a control panel for energy and building security management, and as a calling system for offices, clinics and conference rooms.
