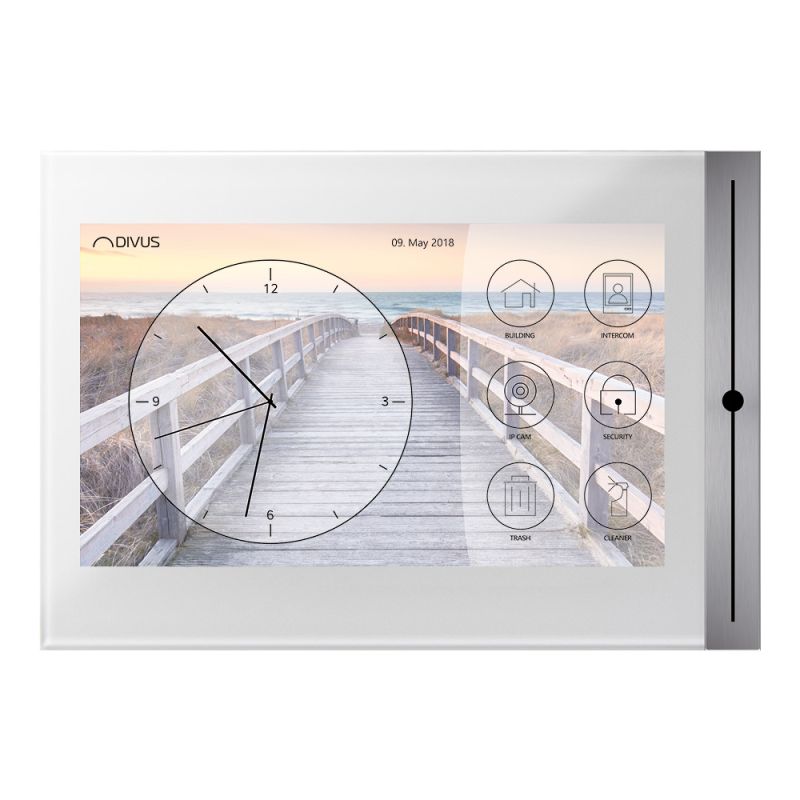

TZ10-W-V4 DIVUS TOUCHZONE 10 WHITE - touch panel for buildings

The DIVUS TZ10-W-V4 panel is a multifunctional control device designed for building automation. This touch panel features a 10.1 inch (25.6 cm) capacitive display with 1024x600 WVGA resolution and an ultra clear glass surface with an anodized aluminum edge.

Technical characteristics

The panel operates with the Android 9 operating system, specifically adapted for building automation and protected by the DIVUS LAUNCHER APP. It has a dual-core Cortex-A72 processor at 1.8 GHz and quad-core Cortex-A53 at 1.4 GHz, with an integrated graphics controller. The main memory is 2 GB DDR SDRAM, while the storage memory is 16 GB of high speed eMMC Flash Memory.

Interface and Sensors

The panel includes a series of sensors including a brightness sensor, a configurable proximity sensor and a position sensor for automatic orientation of the display in portrait or landscape mode. The display surface is made of capacitive touch glass.

Connectivity and Interfaces

• 10/100/1000 Mbps Lan/Ethernet with IEEE 802.3at PoE support
• 2 external USB 2.0 ports
• 1 mini USB OTG port
• 802.11 a/b/g/n Wi-Fi option and Bluetooth 4.0 LE
• RS-232/422/485 serial interface (optional)
• 4 digital inputs and 4 digital GPIO outputs

Multimedia and Functionality

The panel is equipped with an integrated 2 Watt RMS speaker and microphone, designed for VOIP functions and acoustic signals. The microphone sensitivity is -60 ± 2dB, with integrated echo cancellation for two-way communication.

Environmental Conditions

• Operating temperature: 0°C to 30°C
• Relative humidity: 5% to 80% at 25°C (without condensation)
• Vibration/shock loads: 15G/50G

Feeding

The panel has no battery and can be powered via PoE or through a 12-32 V DC connection. The maximum power consumption is 17 W.

Pre-installed applications

Several pre-installed applications are provided, including DIVUS OPTIMA, DIVUS VIDEOPHONE, DIVUS KIBRO, DIVUS IP CAM VIEWER and DIVUS SCREENCLEANER. The panel is compatible with the DIVUS SYNCHRONIZER for installing and managing other Android applications through APK files.
