TZ10-B-V4 DIVUS TOUCHZONE 10 BLACK antibacterial - building

DIVUS TZ10-B-V4 Product Description

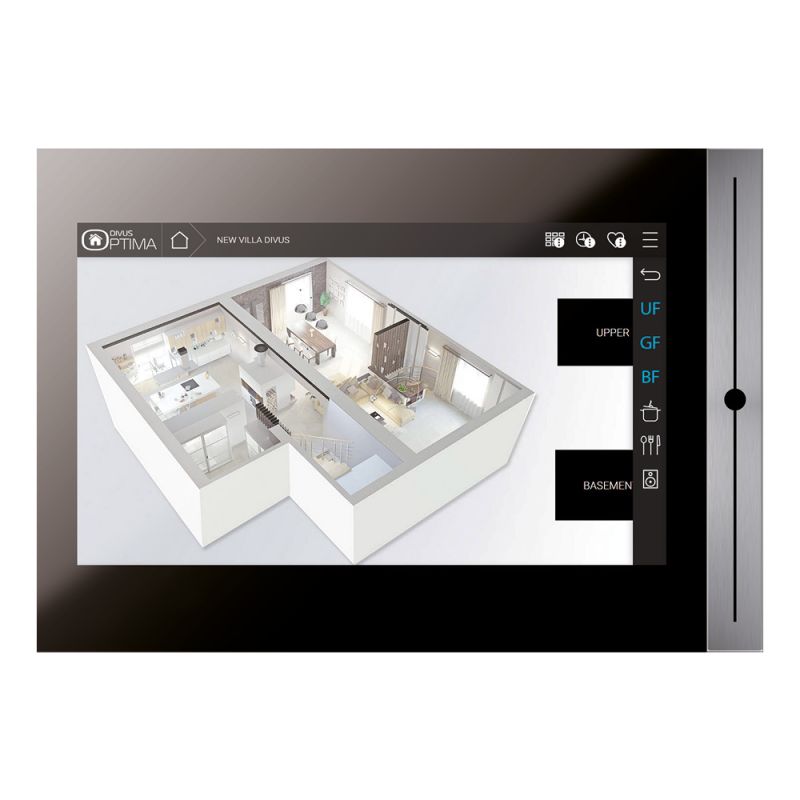

<p The DIVUS TZ10-B-V4 panel is a multifunctional communication device based on Android, designed to be used as an indoor control panel. It offers a wide range of capabilities for the control and management of intelligent buildings.

Technical characteristics

<p The TZ10-B-V4 panel has a 10.1 inch (25.6 cm) multitouch display with capacitive technology and a resolution of 1024x600 pixels. The display surface is made of ultra clear glass with an aluminum side edge, ensuring an elegant appearance and an intuitive user experience.

Processor and Memory

• 1.5 GHz Quad Core Cortex-A53 processor (64-bit)
• RAM memory: 2 GB (optional 4 GB)
• Storage memory: 16 GB eMMC, expandable with microSDHC card

Connectivity and Interfaces

• LAN/Ethernet: 1 x GbE over RJ45 with PoE+ support (802.3at™)
• WiFi: 802.11 a/b/g/n (optional)
• Bluetooth: 4.0 LE (optional)
• USB: 2 x USB 2.0 (external) and 1 x mini USB OTG
• Power supply: compatible with PoE or DC 12-32 V

Sensors and Multimedia Features

• Proximity sensor and light sensor included
• Accelerometer for automatic display orientation
• Speaker: 2 Watt RMS (external)
• Microphone: with echo cancellation function for two-way communication

Functionality of Use

<p The panel can be used to control smart home devices, connect to maintenance services, and manage building security and energy. It supports the installation of mobile apps through APK files, since it does not include pre-installed Google Play services or the Google Play Store.

Other Features

• Display with 250 cd/m² brightness and 400:1 contrast ratio
• Capacitive touch screen technology with 3 mm front glass and double touch function
• IP20 protection class according to EN 60529
• Maximum power consumption without peripherals: 16 W

<p The DIVUS TZ10-B-V4 panel offers a combination of functionality, elegant design and ease of use, making it a great choice for smart buildings and control and management applications.
