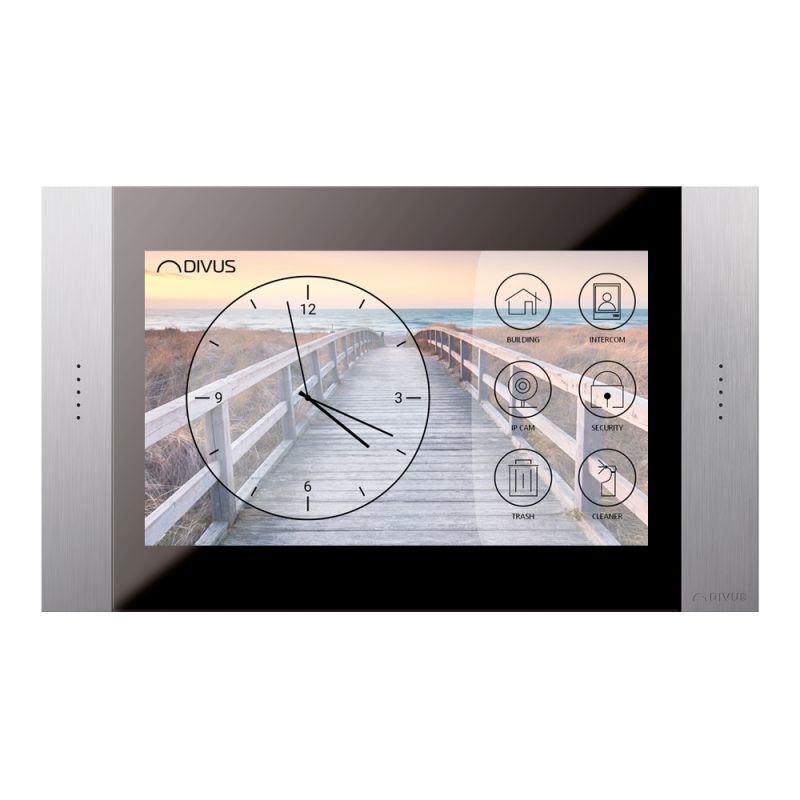

DIVUS DSA19-B: Android Touch Panel for Wall Mount

The DIVUS DSA19-B is an ultra compact system designed for wall mounting, operating with the Android operating system. This device features a design with no moving parts, making it quiet and energy efficient.

Technical characteristics

The DSA19-B features an 18.5-inch (47 cm) TFT LED backlight display with an HD resolution of 1366x768 pixels. The display brightness is 300 cd/m² with a contrast ratio of 1000:1.

Touch Screen and User Interface

The touch panel uses a capacitive touch screen technology projected with a 3 mm front glass, capable of detecting the double touch.

Processor and Memory

The device is equipped with a low-power fanless processor, consisting of a dual Cortex-A72 core at 1.8GHz and four Cortex-A53 cores at 1.4GHz. The available RAM memory is 2 GB, with the option of increasing it to 4 GB.

Power and Connectivity

The power supply is compatible with PoE+ via CAT5e/Cat6 UTP cable, with a maximum length of 100 meters according to the IEEE Std 802.3at™ standard. Alternatively, it can be supplied with a DC voltage of 12-32 VDC. The maximum power consumption without peripherals is 30 W.

Connectivity options include a 45-degree GbE Ethernet port on RJ45, optional 802.11 a/b/g/n WiFi, optional Bluetooth 4.0 LE, two external USB 2.0 ports, and a mini USB OTG port.

Sensors and Multimedia Features

The device includes a proximity sensor, a brightness sensor and a gyroscope for automatic display orientation. The multimedia section includes an external 2 Watt RMS speaker, an external microphone and an echo cancellation function for bidirectional intercom communication.

Serial and Digital Interface

An optional RS-232/422/485 serial interface and four GPIO inputs/outputs are available per relay with a maximum current of 100 mA/5VDC.

• Display: 18.5 inches (47 cm) Widescreen LED Backlight TFT
• Resolution: HD 1366x768 pixels
• Brightness: 300 cd/m²
• Contrast ratio: 1000:1
• Touch Screen: Projected capacitive with 3 mm front glass
• Processor: Dual-core Cortex-A72 1.8GHz and Quad-core Cortex-A53 1.4GHz
• RAM memory: 2 GB (optional 4 GB)
• Power supply: PoE+ or 12-32 VDC
• Connectivity: GbE Ethernet, optional 802.11 a/b/g/n WiFi, optional Bluetooth 4.0 LE
• Sensors: Proximity, Brightness, Gyroscope
• Multimedia Features: 2 Watt RMS Speaker, External Microphone, Echo Cancellation
• Serial interface: RS-232/422/485 optional
• Digital Interface: GPIO - 4 relay inputs/outputs
