DSK19-2-W DIVUS SUPERIO 19 WHITE

MT Code: DVS_DSK19-2-W
Manufacturer Code: DSK19-2-W
Brand: DIVUS

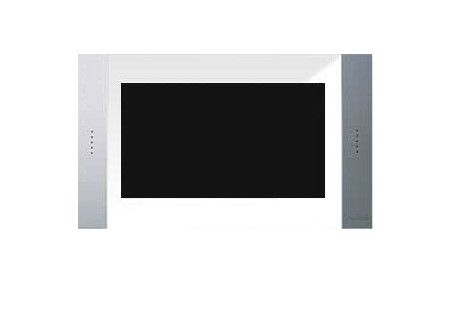

The DIVUS DSK19-2-W is a touch panel that can be incorporated into the wall, designed to offer an elegant and functional solution for various professional applications.

Technical characteristics

This device is equipped with an 18.5-inch (47 cm) widescreen LED backlight display with full-HD resolution (1920x1080 pixels). The touch panel surface is made of capacitive glass with an ultra-clear glass edge.

Hardware

Intel Core i5 processor
4 GB of RAM
60 GB flash storage drive
100-240 VAC power supply

Operating System

The touch panel is equipped with Windows 10 IoT Enterprise MUI, ensuring a stable and secure platform for your applications.

Connectivity and Interface

2 x USB 2.0 accessible from the front
2 x external USB 3.0
1 x RS232, 1 x RS422/485 (connection to header)
DVI-I port for video output (external)
HDMI and DP for video output (external)

Multimedia Features

The panel includes built-in speakers and microphone with echo cancellation, in addition to the free VIDEOPHONE software.

Mechanical Characteristics

The DIVUS DSK19-2-W is designed for quick and easy assembly thanks to the one-person mounting system with DIVUS mounting boxes. The structure is made of anodized aluminum, EMC proofed, and includes natural aluminum frames (FSK19-N).

Areas of Use

The device is resistant to vibrations and shocks (15G/50G) and complies with EMC standards EN 55011, 55022, 500081. The operating temperature range is from 0°C to 30°C, with relative humidity from 5% to 80% at 25°C.
