DSK19-1-W DIVUS SUPERIO 19 WHITE

PRODUCT DESCRIPTION

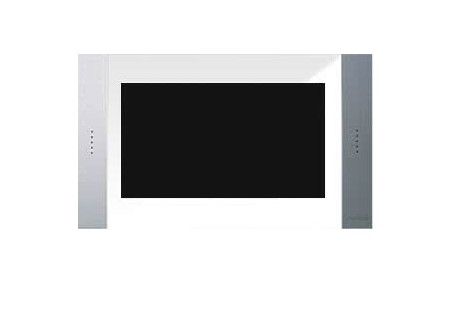

The DIVUS DSK19-1-W is an embeddable touch panel for wall mounting, characterized by a smooth and homogeneous glass surface with a white aluminum edge.

TECHNICAL CHARACTERISTICS

This device features an 18.5-inch (47 cm) wide-screen TFT LED display with a resolution of 1366x768 pixels (WXGA).

DISPLAY AND BRIGHTNESS

• Brightness: 300 cd/m²
• Contrast: 1000:1

OPERATING SYSTEM AND PROCESSOR

• Operating System: Windows 10 IoT Enterprise MUI
• Processor: INTEL Core i5
• RAM: 4 GB
• Storage memory: 60 GB

CONNECTIVITY AND INTERFACES

• USB: 4 x USB 2.0 (2 front, 2 external), 2 x USB 3.0 (external)
• Serial interface: 3 x RS232, 1 x RS422/485 (pin header)
• Video: DVI-I for video output (external), HDMI and DP for video output (external)

MULTIMEDIA AND OTHER FEATURES

• Built-in speaker and microphone with echo cancellation
• VIDEOPHONE software included
• Power supply: 100-240 VAC
• Vibration and shock resistance: 15G/50G
• EMC compatibility: EN 55011, 55022, 500081
• Temperature and relative humidity: +0°C to +30°C max./5% to 80% at 25°C (no condensation)

ASSEMBLY AND DIMENSIONS

• Quick and easy mounting system for a single operator with DIVUS wall mounting boxes
• Cutting dimensions with MS [mm]: 582 x 327 x 80
• Dimensions with FSK frame [mm]: 600 x 345
• Weight: 9 kg
