DSK19-2-B DIVUS SUPERIO 19 BLACK

MT Code: DVS_DSK19-2-B
Manufacturer Code: DSK19-2-B
Brand: DIVUS

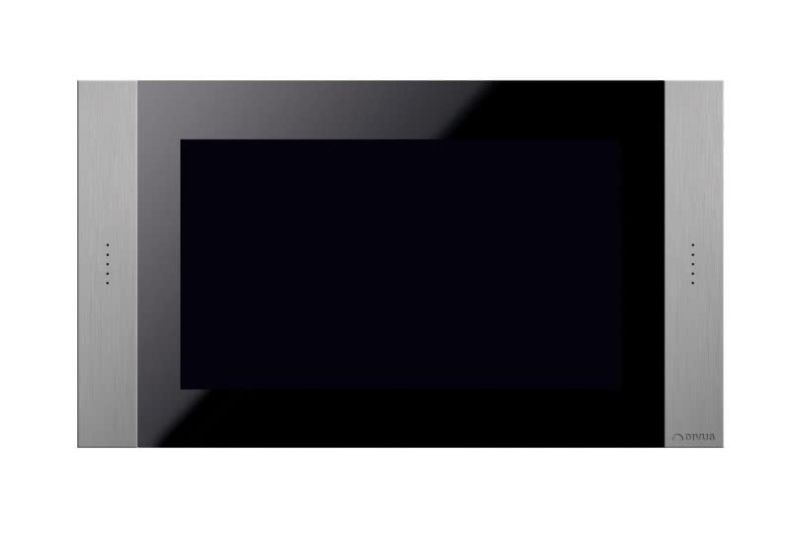

DIVUS DSK19-2-B - Embeddable Wall Mount Touch Panel

The DIVUS DSK19-2-B is an embeddable wall-mount touch panel, designed to offer high performance and a wide range of functionality. This device features an 18.5-inch (47 cm) widescreen LED backlight display with a full-HD resolution of 1920x1080 pixels and a brightness of 300 cd/m².

Technical characteristics

Display: 18.5-inch (47 cm) widescreen LED backlight, 1920x1080 pixel full-HD resolution
Brightness: 300 cd/m²
Contrast Ratio: 1000:1
Touchscreen: Capacitive touch with black ultra-clear glass border
Processor: INTEL Core i5
Memory: 4 GB RAM, 60 GB flash storage drive
Operating System: Windows 10 IoT Enterprise MUI

Connectivity and Interface

USB ports: 4 x USB 2.0 (2 accessible front, 2 external), 2 x USB 3.0 (external)
Serial interface: 3 x RS232, 1 x RS422/485 (pin header)
Video Output: DVI-I (external), HDMI and DisplayPort (external)
Speaker and microphone: Integrated with echo cancellation

Environmental Conditions and Assembly

Vibration and shock resistance: 15G/50G
EMC compatibility: EN 55011, 55022, 500081
Temperature and relative humidity: +0°C to +30°C max./5% to 80% at 25°C (no condensation)
Assembly: Quick and easy mounting system for a single operator with DIVUS wall mounting boxes
Weight: 9 kg
