DSK19-1-B DIVUS SUPERIO 19 BLACK

MT Code: DVS_DSK19-1-B
Manufacturer Code: DSK19-1-B
Brand: DIVUS

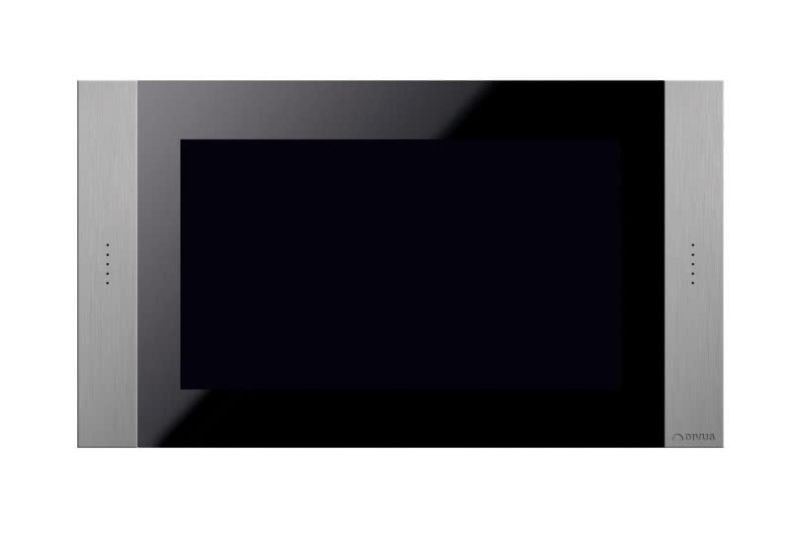

DIVUS DSK19-1-B: Wall Mount Touch Panel

The DIVUS DSK19-1-B is a high-quality touch panel designed for wall mounting, ideal for visualization and building automation applications. This device features a 47 cm (18.5 inch) capacitive display with a WXGA resolution of 1366x768 pixels and a brightness of 300 cd/m², ensuring excellent visibility in different lighting conditions.

Technical characteristics

Display: 47 cm (18.5 inches) TFT widescreen with LED backlight
Resolution: WXGA 1366x768 pixels
Brightness: 300 cd/m²
Contrast: 1000:1
Operating System: Microsoft Windows Embedded Standard 7
Processor: Intel Atom N2800 1.86GHz
RAM memory: 4 GB
Storage memory: 16 GB flash drive

Interface and Connectivity

Capacitive touch interface with smooth glass surface and aluminum edge
Built-in speaker and microphone with echo cancellation
10/100/1000 Mbps LAN/Ethernet interface
4 USB 2.0 ports (2 front and 2 external)
2 USB 3.0 ports (external)
RS232 and RS422/485 serial interface
DVI-I video port for video output (external)

Mechanical and Environmental Characteristics

Wall mounting with quick and easy mounting system for a single operator
Dimensions of the cut in the wall: 582 x 327 x 80 mm
Dimensions with frame: 600 x 345 mm
Weight: 9 kg
Vibration and shock resistance: 15G/50G
EMC compliance: EN 55011, 55022, 500081
Temperature and relative humidity: 0°C to 30°C/5% to 80% at 25°C (without condensation)
