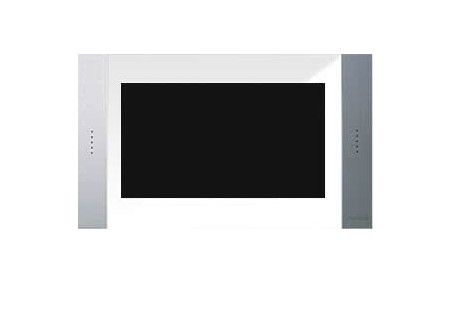

DSK15-2-W DIVUS SUPERIO 15 WHITE

PRODUCT DESCRIPTION

<p The DIVUS DSK15-2-W is a built-in wall-mount touch panel, designed for professional applications. This device has a smooth and homogeneous glass surface with an aluminum edge, ensuring a user experience without rotations or moving parts.

TECHNICAL CHARACTERISTICS

<p The DSK15-2-W touch panel features a 15.6-inch (39.6 cm) TFT LED widescreen display with a WXGA resolution of 1366x768 pixels. The display brightness is 300 cd/m² with a contrast ratio of 500:1.

PROCESSOR AND OPERATING SYSTEM

<p The system is equipped with a 1.83 GHz Quad-Core Intel Celeron N2930 processor and operates with the Windows 10 IoT Enterprise MUI operating system.

MEMORY AND STORAGE

<p The configuration includes 4 GB of RAM and a 60 GB flash storage unit.

INTERFACES AND CONNECTIVITY

<p The panel has:

• 2 x Gigabit LAN (external) with Intel® i211-AT
• 4 x USB 2.0 (1 accessible front, 3 external) and 1 x USB 3.0 (external)
• 3 x RS232 and 1 x RS422/485 (pin header connector)
• DVI-I and HDMI/DP video output (external)

MULTIMEDIA AND OTHER FEATURES

<p The DSK15-2-W includes an integrated speaker and microphone with echo cancellation. The supply voltage is between 100-240 VAC.

ENVIRONMENTAL CONDITIONS

<p The device is resistant to vibrations and shocks up to 15G/50G and complies with EMC standards EN 55011, 55022, 500081. The operating temperature is between 0°C and 30°C with a relative humidity of 5% to 80% at 25°C.

MONTAGE

<p The panel comes with a wall mounting kit and can be installed in different configurations, including mortarless mounting kits.
