DSK15-1-W DIVUS SUPERIO 15 WHITE

MT Code: DVS_DSK15-1-W
Manufacturer Code: DSK15-1-W
Brand: DIVUS

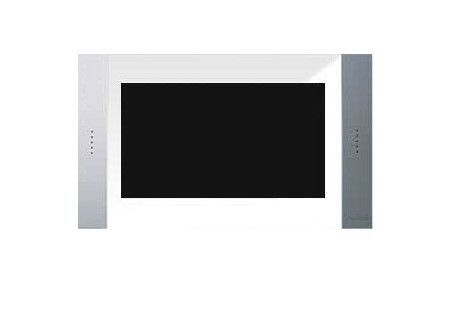

The DIVUS DSK15-1-W is a touch panel that can be incorporated into the wall, designed to offer an elegant and functional solution for managing domestic and commercial functions.

Tactile and Visual Features

This device features a capacitive touch display with clear glass and white border, ensuring an intuitive and easy-to-use user experience. The widescreen LED display measures 25.7 cm (10.1 inches) with a pixel resolution of WSVGA 1024x600.

Hardware and Performance

The DSK15-1-W is equipped with a quad-core Intel Celeron N2930 processor at 1.83 GHz, and has 4 GB of RAM and a 16 GB flash drive. The system operates with Windows Embedded Standard 7 MUI.

Communication Functionality

The panel includes integrated speakers and microphone with acoustic echo cancellation and full-duplex function, ensuring communication without noise and problems, even in environments with background noise.

Intercom and Videophony

The DSK15-1-W supports VIDEOPHONE software, which allows the panel to be used as an internal station for communicating with the videophone station at the entrance. Features include reply/decline, video on/off, volume control with mute function, keyboard, edit keys, and dynamic speed call buttons.

Image Archiving and Management

With each call to the door, the system saves a photo of the visitor if necessary, and offers the possibility to manage an archive of images.

Connectivity and Interface

The panel has several connectivity options, including 10/100/1000 Mbps LAN/Ethernet, 4 USB 2.0 ports (one of which is accessible from the front) and RS232 and RS422/485 serial interfaces.

Integration with Building Systems

The DSK15-1-W is compatible with the KNX standard for building technology, allowing integration with lighting systems, energy management and other building components.

Installation and Design

The panel is designed to be wall-mounted with a compact and stable design, available with natural aluminum frames. The dimensions of the cut in the wall are 315 x 182 x 80 mm.
