DSK15-1-B DIVUS SUPERIO 15 BLACK

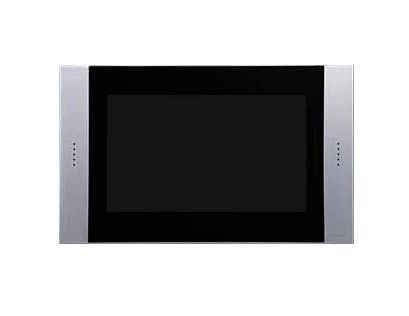

The DIVUS DSK15-1-B touch panel represents an innovative and elegant solution for managing domestic and commercial infrastructures. This device is designed to be wall-mounted and offers a wide range of functionality for controlling and managing various automation systems.

Technical characteristics

The DSK15-1-B features a capacitive glass display with a size of 25.7 cm (10.1 inches) and a pixel resolution of 1024x600 (WSVGA). The display is illuminated by a wide-screen LED backlight in the 16:9 format.

Processor and Memory

The touch panel is equipped with an Intel Celeron N2930 processor, Quad-Core at 1.83 GHz, and has 4 GB of RAM and a 16 GB flash storage unit.

Operating System

The operating system used is Microsoft Windows Embedded Standard 7 MUI, ensuring high stability and compatibility with different applications.

Interface and Connectivity

The DSK15-1-B offers several connectivity options, including:

• 1 x 10/100/1000 Mbps LAN/Ethernet
• 4 x USB 2.0 (2 accessible from the front, 2 from the rear)
• 1 x RS232 and 1 x RS422/485 (on pin connector)
• 1 x DVI-I port for video output

Other Features

The panel includes a built-in speaker and microphone with acoustic echo cancellation, ensuring clear and trouble-free communication. The structure is made with a black or white anodized aluminum border (clearglas), offering an elegant design compatible with different architectures.

Environmental Conditions

The device is designed to operate under variable environmental conditions, with a resistance to vibrations and shocks of 15G/50G and compliance with EMC EN 55011, 55022, 500081. The operating temperature ranges from 0°C to 30°C, with a relative humidity of 5% to 80% at 25°C.

The DSK15-1-B is ideal for integration into home and commercial automation systems, offering a central point for controlling and managing various systems, including lighting, shading, heating and cooling, intercom communication, entertainment, and security.
