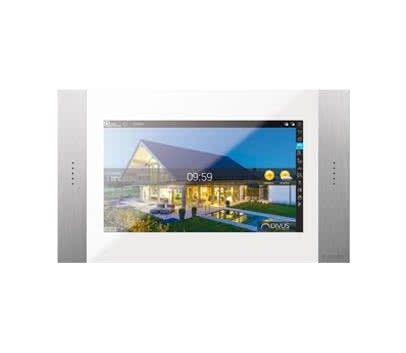

DSK10-W DIVUS SUPERIO 10 WHITE

MT Code: DVS_DSK10-W
Manufacturer Code: DSK10-W
Brand: DIVUS

The DIVUS DSK10-W is a touch panel that can be incorporated into the wall, designed to offer an elegant and functional solution for managing and visualizing building automation systems.

Key Features

This device features a 25.6 cm (10.1 inch) capacitive display with 1024x600 WSVGA resolution and an ultra-clear glass surface with a black border. The panel is equipped with a widescreen LED backlight that guarantees a clear and sharp view in all lighting conditions.

Hardware and Performance

The DSK10-W is equipped with a 1.83 GHz Quad-Core Intel Celeron N2930 processor, 4 GB of RAM and a 16 GB flash drive. The operating system used is Windows 10 IoT Enterprise MUI, which ensures optimal stability and performance.

Communication Functionality

The panel includes an integrated speaker and microphone with echo cancellation, ensuring clear and interference-free communication. The videophone function is supported by the DIVUS VIDEOPHONE software, which allows you to receive and manage video calls intuitively.

Interface and Connections

The DSK10-W has several connection options, including 4 USB 2.0 ports (2 of which are accessible from the front) and 2 external USB 3.0 ports. In addition, there are RS232 and RS422/485 serial interfaces. The panel also supports video output via DVI-I port.

Sensors and Lighting Management

The device is equipped with proximity and brightness sensors, which activate the display and LED lighting when a user approaches. The brightness of the display is intelligently adjusted to always remain readable and to turn off when not in use.

Integration and Personalization

The DSK10-W is designed to be easily integrated into building automation systems, supporting international standards such as KNX. The user interface is customizable, with options to change the ring tones and the overall look of the interface.
