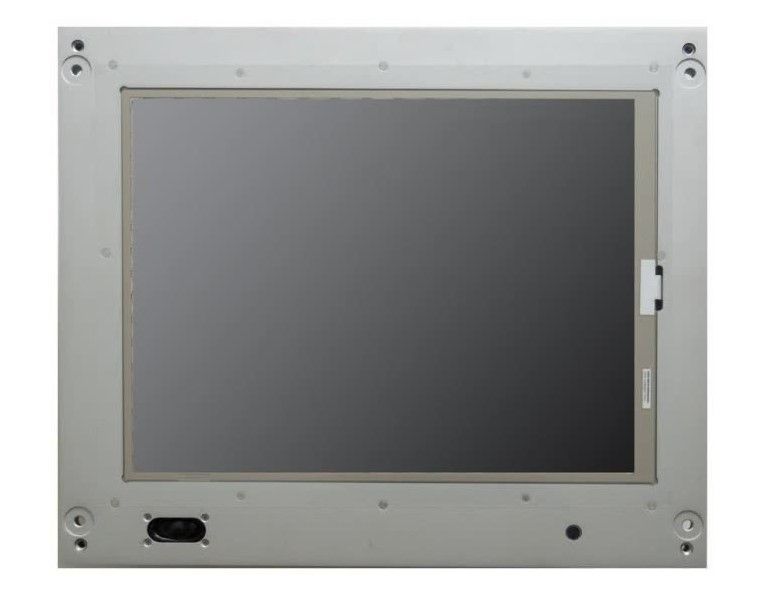

DD19-Monitor DIVUS DOMUS19 monitor.

The DIVUS DD19-Monitor is an embedded monitor with a resistive touchscreen, designed to be wall-mounted in residential and commercial environments. This device features a 19-inch (48.3 cm) screen with a resolution of 1280x1024 pixels and an LED backlight, ensuring a brightness of 300 cd/m² and a contrast ratio of 1000:1.

Technical characteristics

The monitor is equipped with an Intel Celeron Quad Core J1900 2.0 GHz processor, with 2MB of L2 cache and an Intel Gen 7 chipset. The RAM memory is 2GB DDR3 SDRAM, with an option to expand through a PCI Express x1 slot.

Food and Consumption

The power supply is autonomous in the 90-260 VAC range, with a maximum consumption of 50 W. The device is designed to be quiet and without rotating parts.

Interfaces and Compatibility

• VGA interface with 3-meter cable included
• Optional DVI interface for digital signal
• USB interface for the touchscreen controller
• Compatible with operating systems such as Windows 10, Windows 8, Windows 7, Windows Vista, Windows NT4.0, Windows 2000/XP, Windows CE 6.0, Windows Embedded, Mac OS 9.x, Mac OS X Leopard, Linux and QNX Neutrino RTOS V6.3

Resistance and Environmental Conditions

The monitor is resistant to vibrations (0.67G from 5-500MHz) and shocks (300G/2ms), and complies with EMC standards EN 55011, 55022, 500081. It operates in a temperature range from 0°C to +30°C and relative humidity from 5% to 80% at 25°C without condensation.

Touchscreen

The touchscreen uses 6-wire resistive technology with a USB controller, ensuring precise and reliable interaction with the user.

fitment

The DIVUS DD19-Monitor is designed for compact wall mounting, with an easy and quick mounting system that requires only one person. Once mounted, only connections defined as “front-accessible” will be accessible to the user.
