DD15-3-M DIVUS DOMUS 15

PRODUCT DESCRIPTION

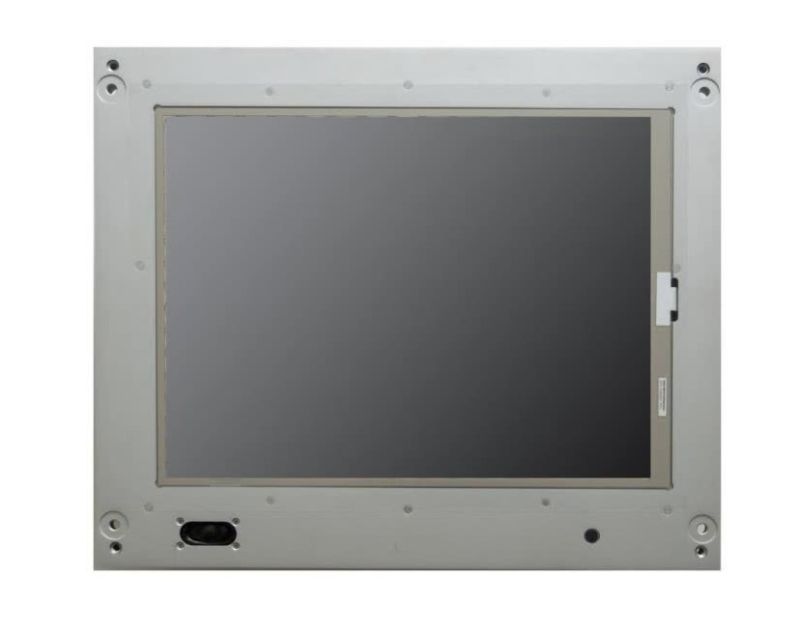

<p_The DIVUS DD15-3-M is a built-in touch panel designed to be wall mounted, ideal for applications in residential and commercial buildings. This device features a 38.1 cm (15 inch) resistive touchscreen with LED backlight and a resolution of 1024x768 pixels in XGA format.

TECHNICAL CHARACTERISTICS

The panel is equipped with a 2.42 GHz quad-core Intel Celeron processor and has 2 GB of RAM and a 60 GB flash storage unit. The supply voltage is between 90-260 VAC.

INTERFACES AND CONNECTIVITY

• LAN/Ethernet with Realtek PCIe 10/100/1000 Mbit controller
• 4 USB 2.0 ports (2 external and 2 front-accessible)
• RS232 (internal) and RS232/422/485 (internal) serial interface
• Free DVI-I port for dual display architecture
• Support for HDTV resolution up to 1080i

FUNCTIONALITY

The DIVUS DD15-3-M includes an integrated speaker and microphone with acoustic echo cancellation. It is equipped with free VIDEOPHONE software for managing calls and communication. The panel supports the Windows 10 IoT MUI operating system.

INSTALLATION AND DESIGN

The panel can be mounted on the wall with a mortarless mounting kit and has an elegant and compact design. The frame is watermarked and the panel seems to “float” on the wall thanks to the 3 mm thick glass (available in black or white).

PERFORMANCE AND RELIABILITY

The device is designed to be quiet and without moving parts, with a maximum power consumption of 25 W. The screen brightness is 350 cd/m² and the contrast is 700:1. The panel is resistant to vibrations and shocks (15G/50G) and complies with EMC standards EN 55011, 55022, 500081.
